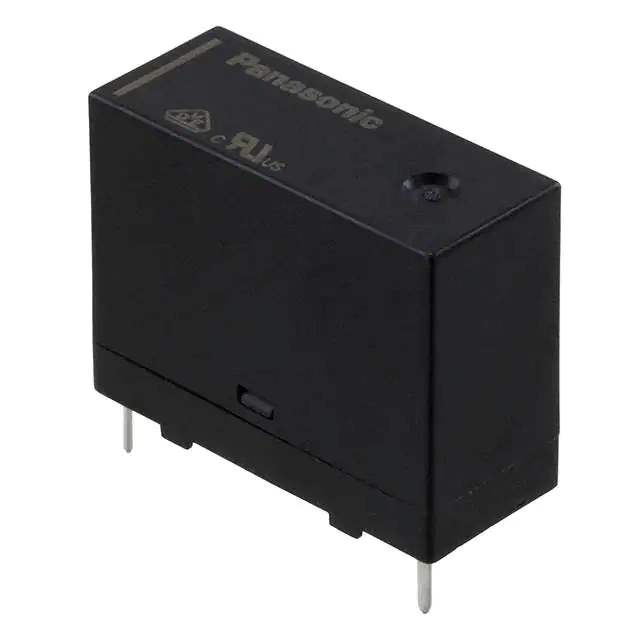

ADW1212HLW Real Image
Same model may have multiple batches, images only for reference.

ADW1212HLW

Part No ADW1212HLW
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V / General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series DW-H
Package Tray
Product Status Active
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16 A
Switching Voltage 277VAC - Max
Coil Current 33.3 mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 9.6 VDC
Operate Time 15 ms
Release Time 15 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 360 Ohms
Base Product Number ADW1212
Standard Package 100 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 860632-ADW1212HLW
Ultra Librarian 3D Model Ultra Librarian ADW1212HLW CAD Model

Description

The Panasonic 860632-ADW1212HLW is a power relay from the DW-H series.

  • Termination Style: PC pin
  • Packaging: tray
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: silver tin oxide (AgSnO)
  • Coil Resistance: 360 Ohms
  • Coil Current: 33.3 mA
  • Operate Time: 15 ms
  • Type: general-purpose
  • Design: latching, dual coil
  • Coil Voltage: 12VDC
  • Contact Rating: 16 A
  • Switching Voltage: 277VAC maximum
  • Release Time: 15 ms
  • Protection: sealed with flux protection
  • Mounting Type: through-hole
  • Temperature Range: -40°C to 85°C
