Same model may have multiple batches, images only for reference.

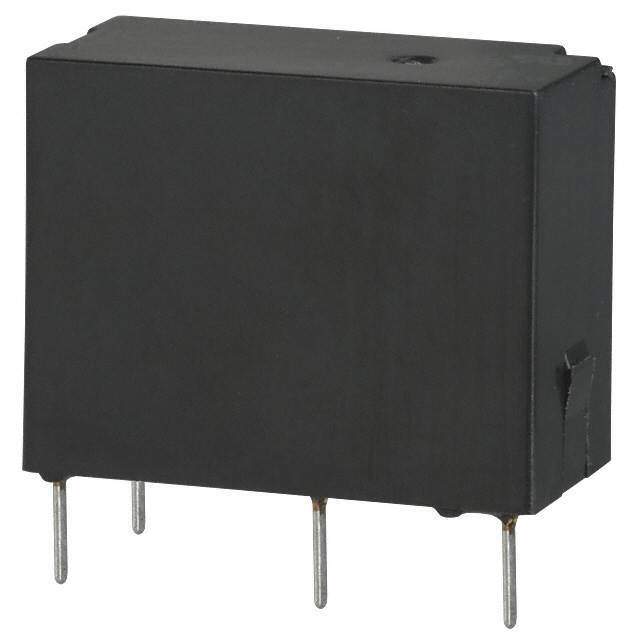

JQ1AP-24V-F Real Image
Same model may have multiple batches, images only for reference.

JQ1AP-24V-F

Part No JQ1AP-24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 10A 24V / Power Relay 24VDC 10(NO)/3(NC)A SPST-NO(20x10x16)mm THT
Datasheet
JQ1AP-24V-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Series JQ
Packaging Bulk
Part Status Obsolete(EOL)
Relay Type General
Coil Type Non Latching
Coil Current 8.3mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 10A
Switching Voltage 250VAC, 110VDC - Max
Turn On Voltage (Maximum) 19.2 VDC
Turn Off Voltage (Minimum) 1.2 VDC
Operate Time 20ms
Release Time 10ms
Features Insulation - Class E
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Tin Oxide (AgSnO)
Coil Power 200 mW
Coil Resistance 2.88 kOhms
Operating Temperature Range -40°C ~ 70°C
Win Source Part Number 777696-JQ1AP-24V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name JQ
Introduction Date December 01, 2003
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian JQ1AP-24V-F CAD Model

Description

The Panasonic Electric Works JQ1AP-24V-F relay is a JQ series general relay.

  • Series: JQ
  • Contact Form: SPST-NO (1 Form A)
  • Contact Material: Silver Tin Oxide (AgSnO)
  • Contact Rating: 10A
  • Switching Voltage: 250VAC, 110VDC - Max
  • Coil Voltage: 24VDC
  • Coil Resistance: 2.88 kOhms
  • Coil Current: 8.3mA
  • Operate Time: 20ms
  • Release Time: 10ms
  • Coil Power: 200 mW
  • Termination: PC Pin
  • Mounting Style: Through Hole
  • Operating Temperature: -40°C to 70°C
  • Insulation Class: E
  • Latching: Non-Latching
  • Status: Obsolete (EOL)
  • Family: JQ
  • Packaging: Bulk
  • Alternative Parts (Cross-Reference): ALQ324
  • Introduction Date: December 01, 2003
  • Popularity: Medium
  • Quantity Per Package: 100
