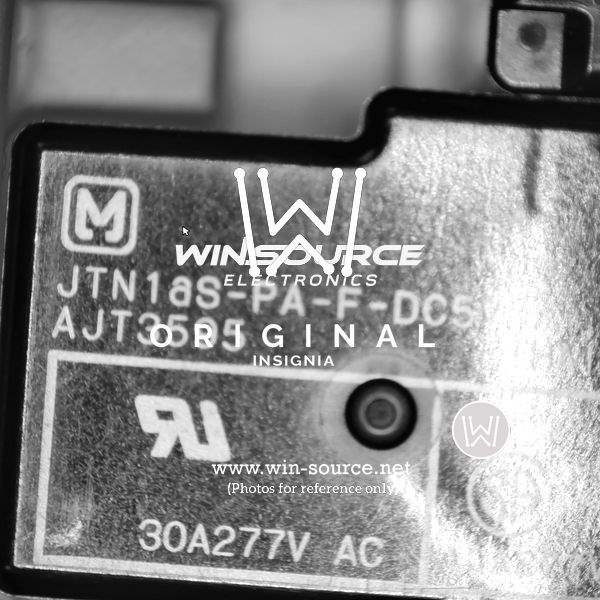

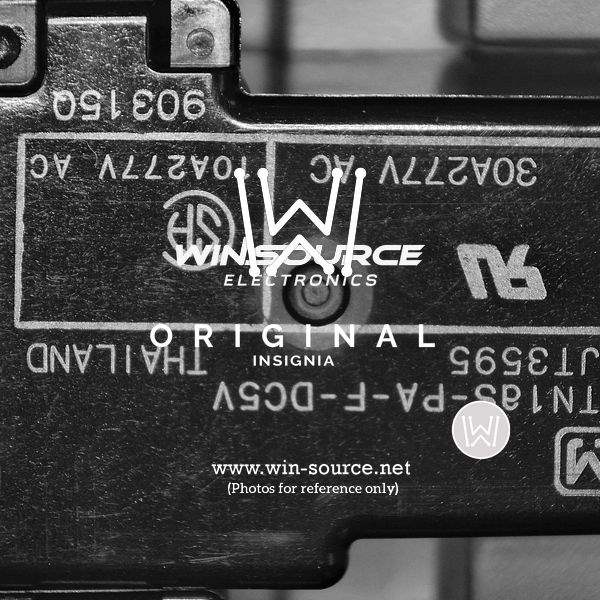

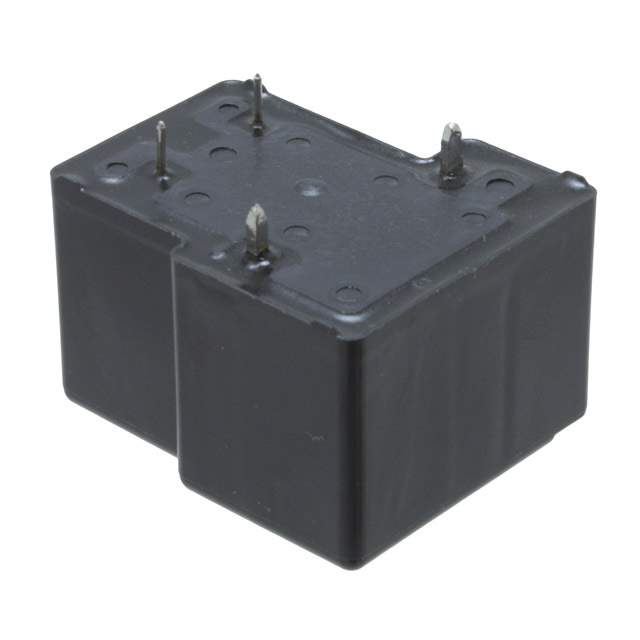

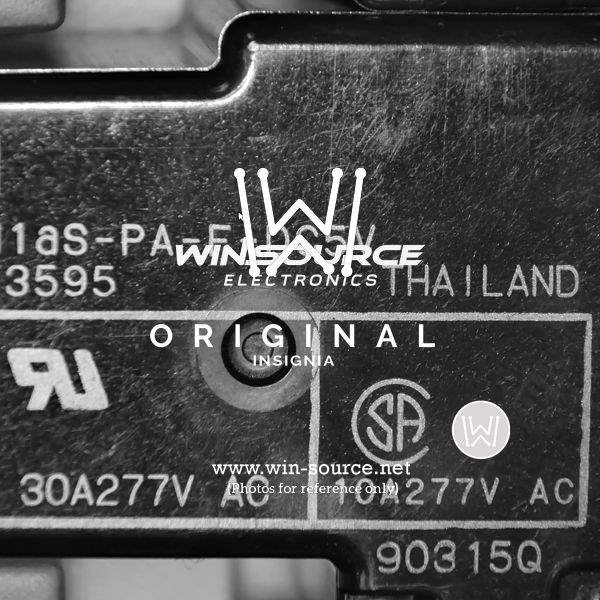

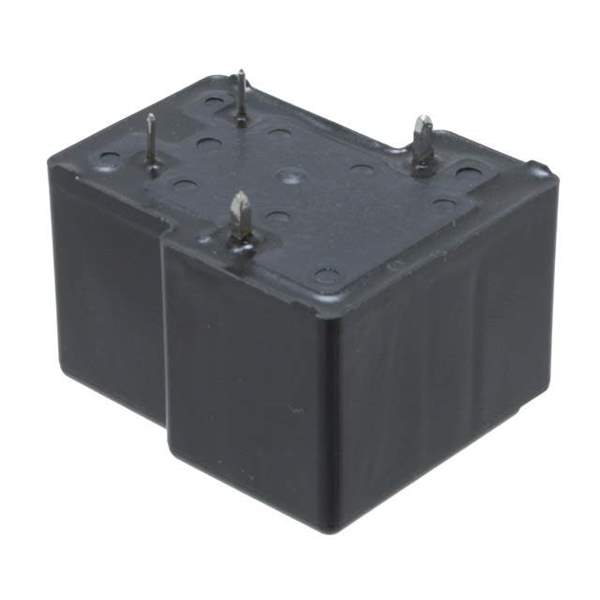

JTN1AS-PA-F-DC5V Real Image JTN1AS-PA-F-DC5V Real Image1 JTN1AS-PA-F-DC5V Real Image2 JTN1AS-PA-F-DC5V Real Image3
Same model may have multiple batches, images only for reference.
JTN1AS-PA-F-DC5V Real Image JTN1AS-PA-F-DC5V Real Image1 JTN1AS-PA-F-DC5V Real Image2 JTN1AS-PA-F-DC5V Real Image3
JTN1AS-PA-F-DC5V Real Image JTN1AS-PA-F-DC5V Real Image1 JTN1AS-PA-F-DC5V Real Image2 JTN1AS-PA-F-DC5V Real Image3
Same model may have multiple batches, images only for reference.

JTN1AS-PA-F-DC5V

Part No JTN1AS-PA-F-DC5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 5V / General Purpose Relay SPST-NO (1 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr Panasonic Electric Works
Series JT-N
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30 A
Switching Voltage 277VAC - Max
Coil Current 160 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Coil Insulation Class F
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 20 ms
Release Time 10 ms
Temperature Range - Operating -55°C ~ 85°C
Contact Material Silver Tin Oxide (AgSnO)
Relay Type General Purpose
Coil Resistance 31 Ohms
Base Product Number JTN1AS
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Other Names 255-2816,JTN1AS-PA-F-DC5V-ND,JTN1AS-PA-F-DC5V-NDR,JTN1ASPAFDC5V
Standard Package 50
Win Source Part Number 1148953-JTN1AS-PA-F-DC5V
Ultra Librarian 3D Model Ultra Librarian JTN1AS-PA-F-DC5V CAD Model

Description

The JT-N series power relay is a general-purpose relay with a SPST-NO contact form and a switching voltage of up to 277VAC.

  • Contact Form: SPST-NO
  • Switching Voltage: Up to 277VAC
  • Contact Rating: 30A
  • Coil Voltage: 5VDC
  • Coil Resistance: 31 Ohms
  • Coil Current: 160 mA
  • Temperature Range: -55°C to 85°C
  • Release Time: 10 ms
  • Coil Insulation: Class F
  • Feature: Fully Sealed
  • Application: Power Relays over 2 Amps
