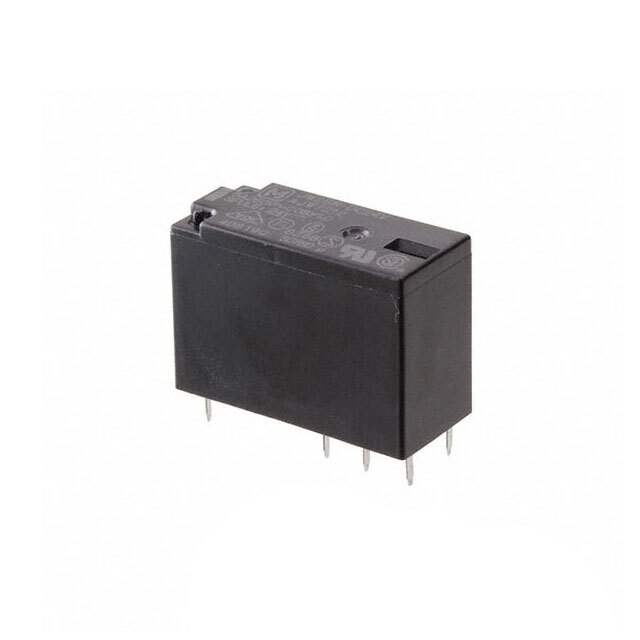

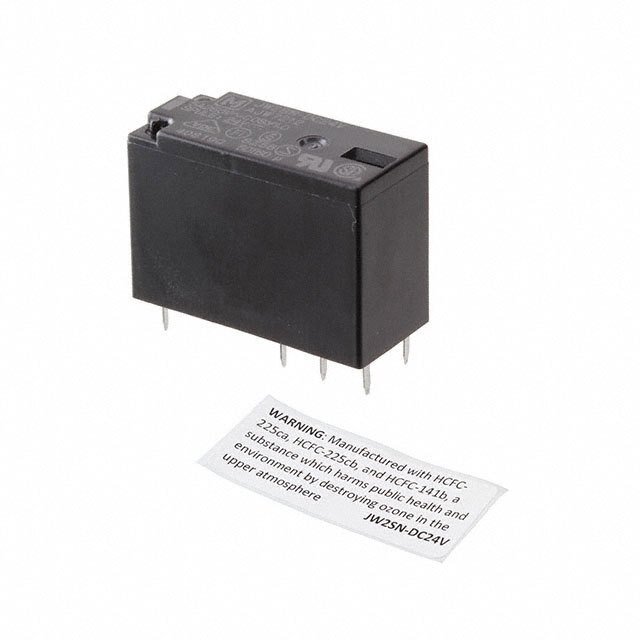

JW2SN-DC24V

Name: JW2SN-DC24V
Brand: Panasonic
SKU: 166459
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	JW2SN-DC24V
Manufacturer	Panasonic
Catalog	Power Relays, Over 2 Amps
Description	RELAY GEN PURPOSE DPDT 5A 24V
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Relays
Manufacturer	Panasonic Electric Works
Packaging	Tray
Status	Active
Relay Type	General Purpose
Coil Type	Non Latching
Coil Current	22mA
Coil Voltage	24VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	5A
Switching Voltage	250VAC, 30VDC - Max
Turn On Voltage (Max)	16.8 VDC
Turn Off Voltage (Min)	2.4 VDC
Operate Time	15ms
Release Time	5ms
Features	Sealed - Fully
Mounting	Through Hole
Termination Style	PC Pin
Coil Power	530 mW
Coil Resistance	1.1 kOhms
Temperature Range - Operating	-40°C to 60°C
Win Source Part Number	66459-JW2SN-DC24V
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	JW
Introduction Date	December 01, 2003
ECCN	EAR99
Estimated EOL Date	2023
Quantity per package	100
Ultra Librarian 3D Model	Ultra Librarian JW2SN-DC24V CAD Model

Alternative Products

Description

The JW2SN-DC24V is a DPDT (2 Form C) general-purpose relay manufactured by Panasonic Electric Works.

Supply and Demand Status: Balanced
Sealed: Fully-featured
Mounting Style: Through-hole
Termination: PC pins
Coil Voltage: 24VDC
Contact Rating: 5A
