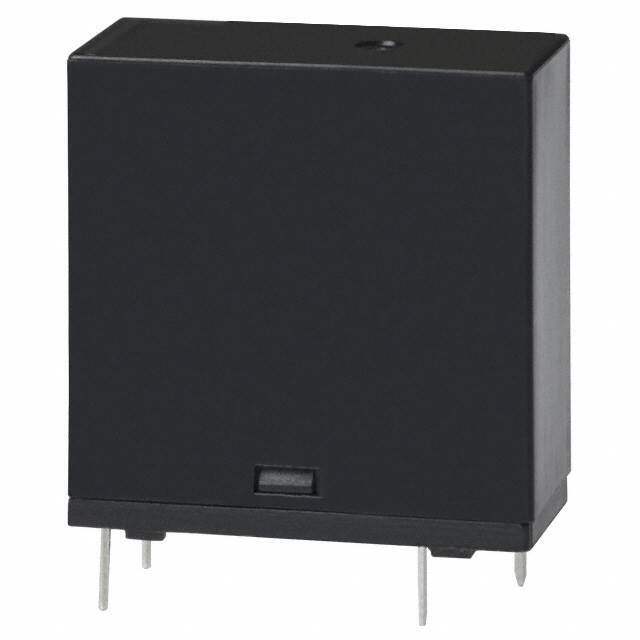

LKS1AF-9V Real Image
Same model may have multiple batches, images only for reference.

LKS1AF-9V

Part No LKS1AF-9V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE SPST 5A 9V
Datasheet
LKS1AF-9V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Bulk
Status Obsolete(EOL)
Relay Type General Purpose
Coil Type Non Latching
Coil Current 27.8mA
Coil Voltage 9VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5A
Switching Voltage 277VAC - Max
Turn On Voltage (Max) 6.3 VDC
Turn Off Voltage (Min) 0.9 VDC
Operate Time 15ms
Release Time 5ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 250 mW
Coil Resistance 324 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 206271-LKS1AF-9V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian LKS1AF-9V CAD Model

Description

The Panasonic Electric Works General Purpose Relay with Win Source Part Number 206271-LKS1AF-9V is a SPST-NO (1 Form A) device designed for use in Relays.

  • Contact Rating (Current): 5A
  • Switching Voltage: 277VAC - Max
  • Turn On Voltage (Max): 6.3 VDC
  • Turn Off Voltage (Min): 0.9 VDC
  • Coil Resistance: 324 Ohms
  • Coil Current: 27.8mA
  • Operate Time: 15ms
  • Release Time: 5ms
  • Packaging: bulk
  • Termination Style: PC Pin
  • Sealed: sealed for flux protection
  • Coil Type: Non Latching
  • Coil Voltage: 9VDC
  • Operating Temperature: -40°C to 70°C
  • Status: obsolete (EOL)
  • Supply and Demand Status: limited
