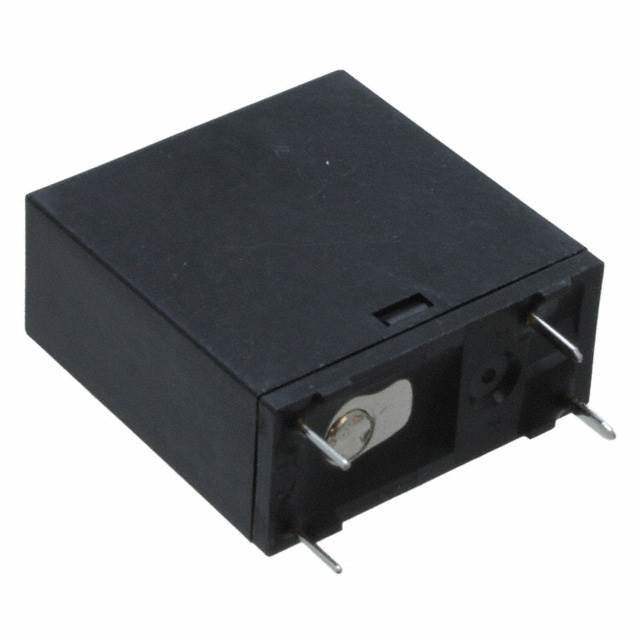

LKT1AF-5V Real Image
Same model may have multiple batches, images only for reference.

LKT1AF-5V

Part No LKT1AF-5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 5A 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tray
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 50mA
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 5A
Switching Voltage 277VAC - Max
Turn On Voltage (Max) 3.5 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 15ms
Release Time 5ms
Features Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 250 mW
Coil Resistance 100 Ohms
Temperature Range - Operating -40°C to 70°C
Win Source Part Number 070985-LKT1AF-5V
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Ultra Librarian 3D Model Ultra Librarian LKT1AF-5V CAD Model

Description

The LKT1AF-5V is a Panasonic Electric Works manufactured electronic component used in various applications.

  • Features: This sealed flux protection PC pin relay
  • Contact Form: SPST-NO (1 Form A)
  • Contact Rating: 5A
  • Coil Voltage: 5VDC
  • Coil Resistance: 100 Ohms
  • Coil Current: 50mA
  • Relay Type: general purpose
  • Coil Type: non-latching
  • Switching Voltage: 277VAC - Max
  • Turn on Voltage (Max): 3.5 VDC
  • Compliance: lead-free and RoHS compliant
  • Supply and Demand Status: limited
  • Quantity per package: 100
