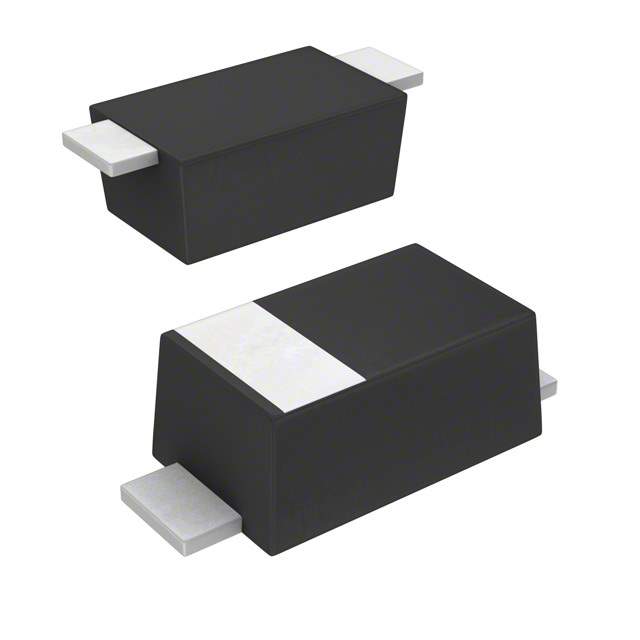

MA22D1500L Real Image
Same model may have multiple batches, images only for reference.

MA22D1500L

Part No MA22D1500L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 1A MINI2
Datasheet
MA22D1500L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 430mV @ 1mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 10ns
Current - Reverse Leakage @ Vr 100μA @ 20V
Capacitance @ Vr, F 30pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package Mini2-F1
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 112299-MA22D1500L
Ultra Librarian 3D Model Ultra Librarian MA22D1500L CAD Model

Description

The Panasonic Electronic Components MA22D1500L is a Schottky diode used in various applications. Manufactured by Panasonic Electronic Components and part of the Discrete Semiconductor Products category, the Win Source Part Number for this component is 112299-MA22D1500L. This product is obsolete (EOL) and has a Mini2-F1 case/package. It features a fast recovery speed of 200mA (Io) and can operate at a maximum junction temperature of 150°C.
