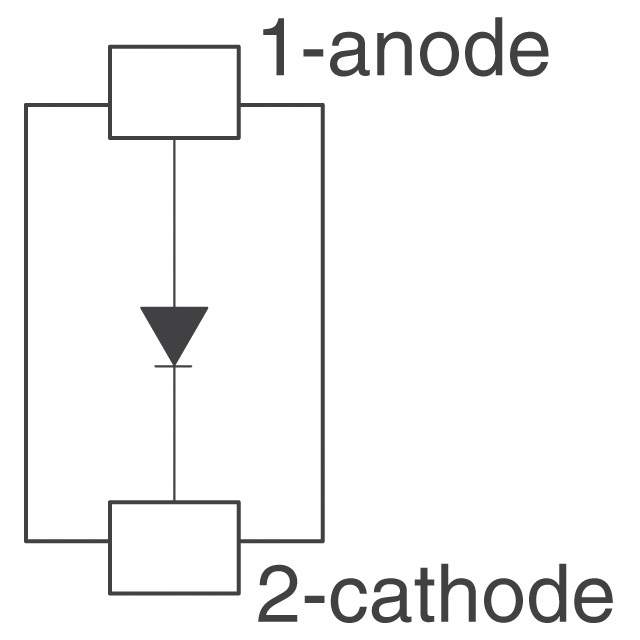

MA27P010GL Real Image
Same model may have multiple batches, images only for reference.

MA27P010GL

Part No MA27P010GL
Manufacturer Panasonic
Catalog RF Diodes
Description DIODE PIN 60V 100MA SSSMINI-2P
Datasheet
MA27P010GL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 60V
Current - Max 100mA
Capacitance @ Vr, F 0.8pF @ 1V, 1MHz
Resistance @ If, F 1 Ohm @ 10mA, 100MHz
Power Dissipation (Max) 150mW
Temperature Range - Operating 150°C (TJ)
Case / Package SSSMini2-F3
Win Source Part Number 104289-MA27P010GL
Ultra Librarian 3D Model Ultra Librarian MA27P010GL CAD Model

Description

The Panasonic Electronic Components 104289-MA27P010GL is a PIN-single diode.

  • Category: Discrete Semiconductor Products
  • Packaging: Reel - TR
  • Maximum Power Dissipation: 150mW
  • Current Max: 100mA
  • Peak Reverse Voltage: 60V
  • Resistance @ If, F: 1 Ohm @ 10mA, 100MHz
  • Capacitance @ Vr, F: 0.8pF @ 1V, 1MHz
  • Operating Temperature: 125°C (TJ)
  • Status: Obsolete (EOL)
