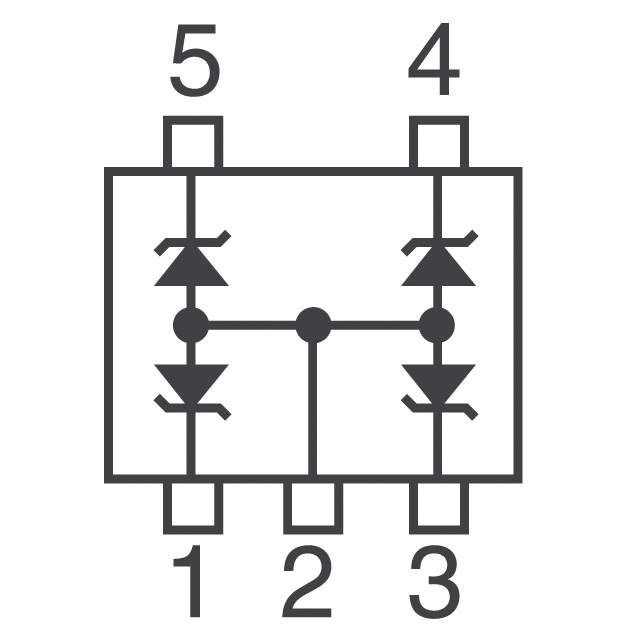

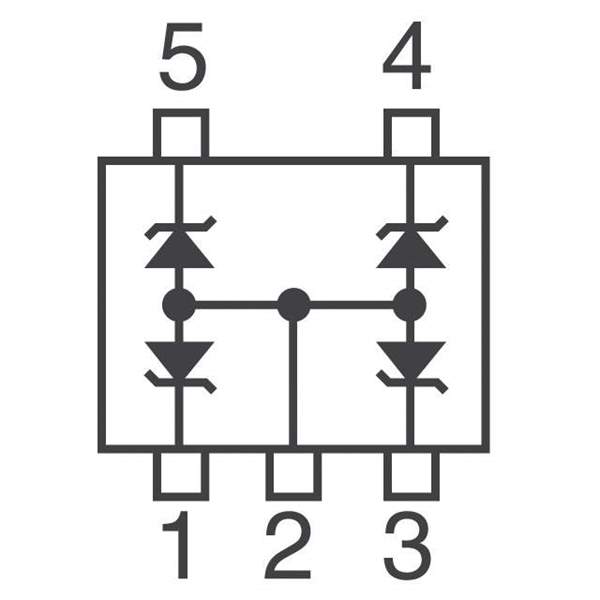

MAZM068H0L Real Image
Same model may have multiple batches, images only for reference.

MAZM068H0L

Part No MAZM068H0L
Manufacturer Panasonic
Catalog TVS - Diodes
Description TVS DIODE 4VWM SSMINI5
Datasheet
MAZM068H0L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 4V
Minimum Breakdown Voltage 6.4V
Applications General Purpose
Mounting SMD (SMT)
Case / Package SSMini5-F1
Win Source Part Number 100183-MAZM068H0L
Ultra Librarian 3D Model Ultra Librarian MAZM068H0L CAD Model

Description

The Panasonic Electronic Components' part number 100183-MAZM068H0L is a Zener type component that has a stand-off voltage of 4V and a minimum breakdown voltage of 6.4V.

  • Stand-off Voltage: 4V
  • Minimum Breakdown Voltage: 6.4V
  • Channels: The component has four unidirectional channels
  • Application: The component is suitable for general-purpose applications.
  • Mounting: The component is mounted using the SMD (SMT) method and comes in an SSMini5-F1 packaging.
  • Category: The component is categorized under Circuit Protection and is now obsolete (EOL).
