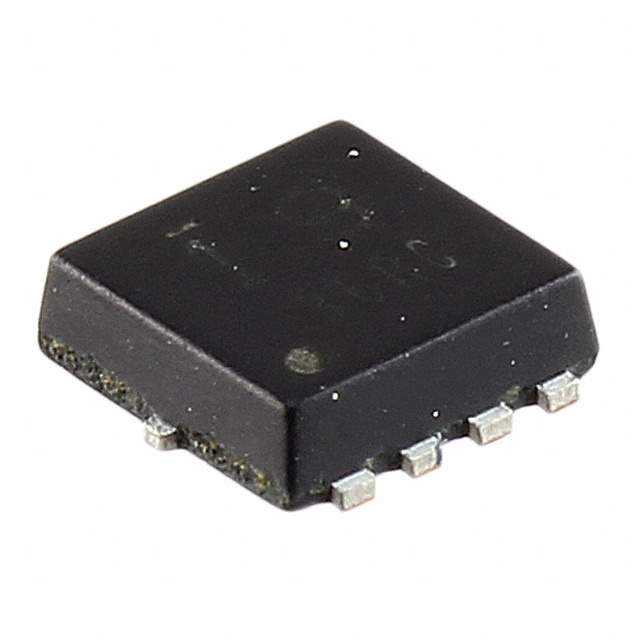

Same model may have multiple batches, images only for reference.

SK8403170L

Name: SK8403170L
Brand: Panasonic
SKU: 513439
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SK8403170L
Manufacturer	Panasonic
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 30V 16A 8HSSO
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Panasonic Electronic Components
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	30V
Continuous Drain Current at 25°C	16A (Ta), 59A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	3V @ 2.56mA
Max Gate Charge	17nC @ 4.5V
Max Input Capacitance	2940pF @ 10V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	2W (Ta), 24.6W (Tc)
Maximum Rds On at Id,Vgs	4.1 mOhm @ 12A, 10V
Temperature Range - Operating	150°C (TJ)
Mounting	SMD (SMT)
Case / Package	8-HSSO
Dimension	8-SMD, Flat Lead
Win Source Part Number	1096680-SK8403170L
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian SK8403170L CAD Model

Alternative Products

Description

The SK8403170L is an N-channel MOSFET that has a maximum power dissipation of 2W (Ta) and 24.6W (Tc).

Mounting: Reel
Drive Voltage: 4.5V and 10V
Drain-Source Breakdown Voltage: 30V
Continuous Drain Current @ 25 degrees Celsius: 16A (Ta) and 59A (Tc)
Gate-Source Threshold Voltage: 3V @ 2.56mA
Maximum Gate Charge: 17nC @ 4.5V
Maximum Input Capacitance: 2940pF @ 10V
Maximum Rds on @ Id,Vgs: 4.1 mOhm @ 12A, 10V
Application: Discrete semiconductor products
