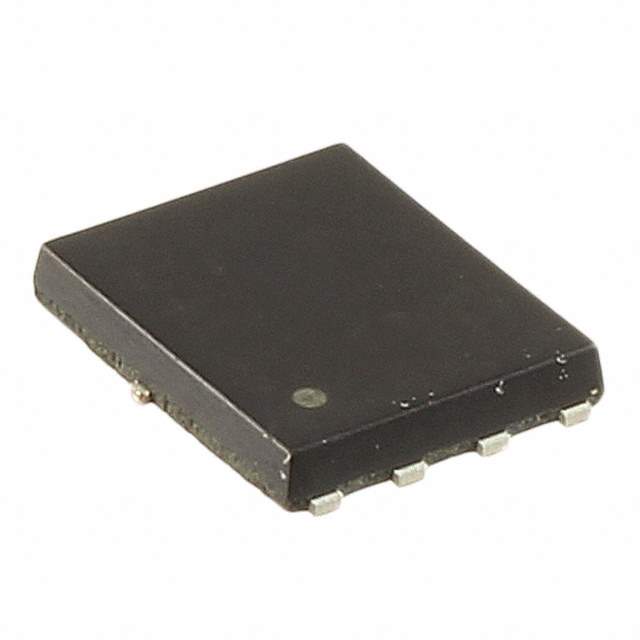

SK8603170L Real Image
Same model may have multiple batches, images only for reference.

SK8603170L

Part No SK8603170L
Manufacturer Panasonic
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 20A 8HSO / Trans MOSFET N-CH Si 30V 20A 8-Pin HSO8-F4-B T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel package
Channel Type Type N
Technology MOSFET
Drain Source Voltage 30V
Current - Continuous Drain (Id) @ 25°C 20A (Ta), 59A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V
Vgs(th) (Maximum) @ Id 3V @ 2.56mA
Gate Charge (Qg) (Maximum) @ Vgs 17nC @ 4.5V
Input Capacitance (Ciss) (Maximum) @ Vds 2940pF @ 10V
Vgs (Maximum) ±20V
Power Dissipation (Maximum) 2.8W (Ta), 24W (Tc)
Rds On (Maximum) @ Id, Vgs 4.1 mOhm @ 14A, 10V
Operating Temperature Range 150°C (TJ)
Mounting SMD
Manufacturer Package 8-HSO
Package 8-PowerSMD, Flat Leads
Win Source Part Number 794466-SK8603170L
Popularity Medium
Supply and Demand Status Balance
Family Name SK8603170L
Introduction Date May 31, 2013
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian SK8603170L CAD Model

Description

The Panasonic Electronic Components SK8603170L is a MOSFET transistor from Panasonic Electronic Components.

  • Drain-Source Voltage: 30V
  • Continuous Drain Current @ 25°C: 20A
  • Maximum Power Dissipation @ 25°C: 2.8W
  • Maximum Power Dissipation @ Tc: 24W
  • Channel Type: N
  • Gate-Source Threshold Voltage: 3V @ 2.56mA
  • Input Capacitance: 2940pF @ 10V
  • Gate Charge: 17nC @ 4.5V
  • Package: 8-PowerSMD, Flat Leads
