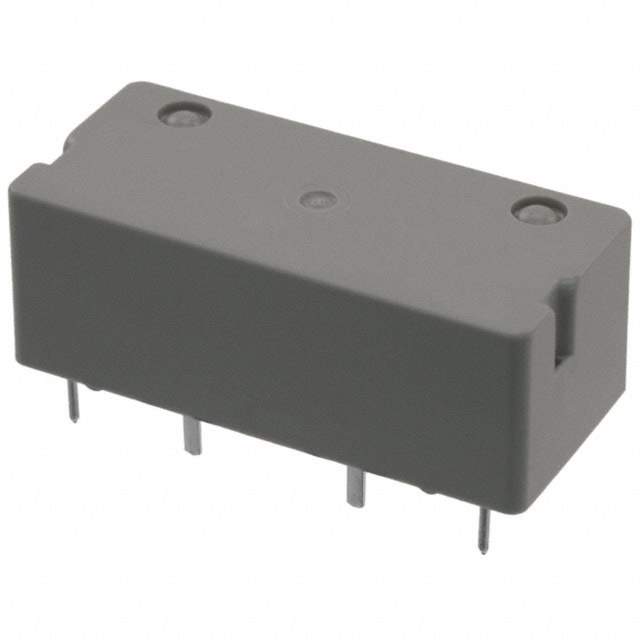

ST2-L2-DC24V-F Real Image
Same model may have multiple batches, images only for reference.

ST2-L2-DC24V-F

Part No ST2-L2-DC24V-F
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 8A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Latching, Dual Coil
Coil Current 10mA
Coil Voltage 24VDC
Contact Form DPST (2 Form A)
Contact Rating (Current) 8A
Switching Voltage 380VAC, 250VDC - Max
Turn On Voltage (Max) 19.2 VDC
Operate Time 10ms
Release Time 10ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 240 mW
Coil Resistance 2.4 kOhms
Temperature Range - Operating -40°C to 60°C
Win Source Part Number 133964-ST2-L2-DC24V-F
Popularity Medium
Supply and Demand Status Limited
Quantity per package 30
Ultra Librarian 3D Model Ultra Librarian ST2-L2-DC24V-F CAD Model

Description

The ST2-L2-DC24V-F is a latching relay manufactured by Panasonic Electric Works.

  • Supply and Demand Status: Limited
  • Applications: Home appliances, industrial equipment, and automotive systems
  • Contact Form: DPST (2 Form A)
  • Maximum Switching Voltage: 380VAC or 250VDC
  • Coil Voltage: 24VDC
  • Coil Current: 10mA
  • Power Consumption: 240 mW
  • Mounting Package: Through-hole
