Same model may have multiple batches, images only for reference.

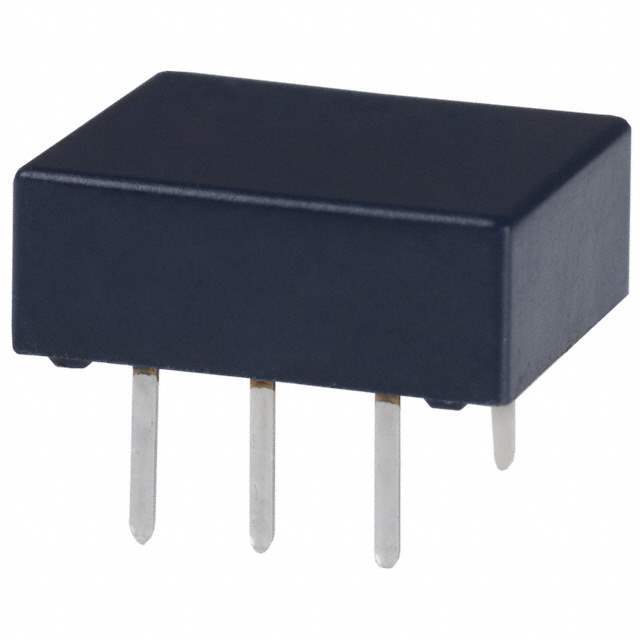

TK1-12V Panasonic Electric Works
Same model may have multiple batches, images only for reference.

TK1-12V

Part No TK1-12V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE SPDT 2A 12V
Datasheet
TK1-12V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308381-TK1-12V
Category Relays> Signal Relays, Up to 2 Amps
Manufacturer Panasonic Electric Works
Packaging Tube
Part Status Obsolete
Mounting Type Through Hole
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 2 A
Switching Voltage 220VDC - Max
Coil Current 11.7 mA
Ultra Librarian 3D Model Ultra Librarian TK1-12V CAD Model

Description

  • Compact and flat type
  • High contact capacity: 2 A
  • Outstanding surge resistance
  • Initial breakdown voltage: 1,500 Vrms for 1 min. (Between contact and coil)
  • Nominal operating power: High sensitivity of 140mW (Single side stable type)
