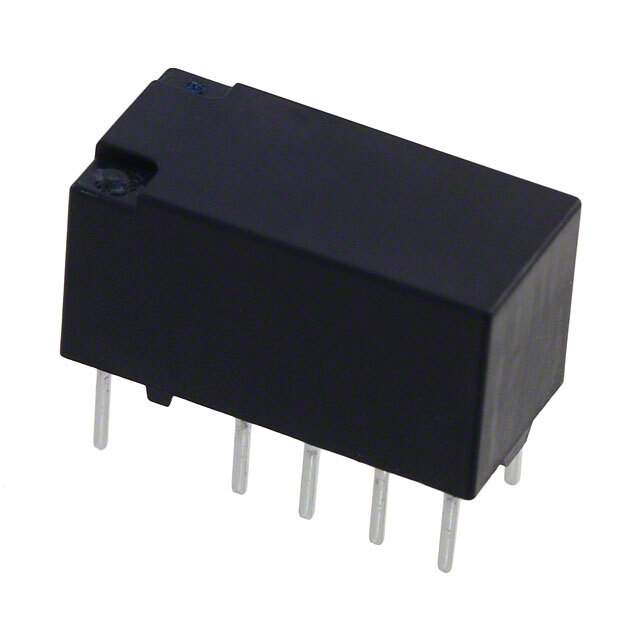

TX2-L2-4.5V Real Image
Same model may have multiple batches, images only for reference.

TX2-L2-4.5V

Part No TX2-L2-4.5V
Manufacturer Panasonic
Catalog Signal Relays, Up to 2 Amps
Description 2 A CAPACITY RELAY WITH HIGH SURGE VOLTAGE & HIGH BREAKDOWN VOLTAGE | RELAY TELECOM DPDT 2A 4.5VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube
Mounting Style Through Hole
Coil Voltage 4.5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 220VDC - Max
Coil Current 44.5mA
Coil Type Latching, Dual Coil
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 3.38 VDC
Operate Time 4ms
Release Time 4ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver (Ag), Gold (Au)
Relay Type Telecom
Coil Resistance 101 Ohms
Manufacturer Pack Quantity 40
MSL Level 1 (Unlimited)
Win Source Part Number 1275104-TX2-L2-4.5V
Manufacturer Homepage 0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TX2-L2-4.5V CAD Model

Description

The TX2-L2-4.5V is a latching dual coil DPDT (2 Form C) telecom relay manufactured by Panasonic Electric Works.

  • Contact Rating (Current): 2A
  • Switching Voltage: 220VDC - Max
  • Coil Voltage: 4.5VDC
  • Coil Resistance: 101 Ohms
  • Coil Current: 44.5mA
  • Operate Time: 4ms
  • Release Time: 4ms
  • Temperature Range: -40°C to 85°C
