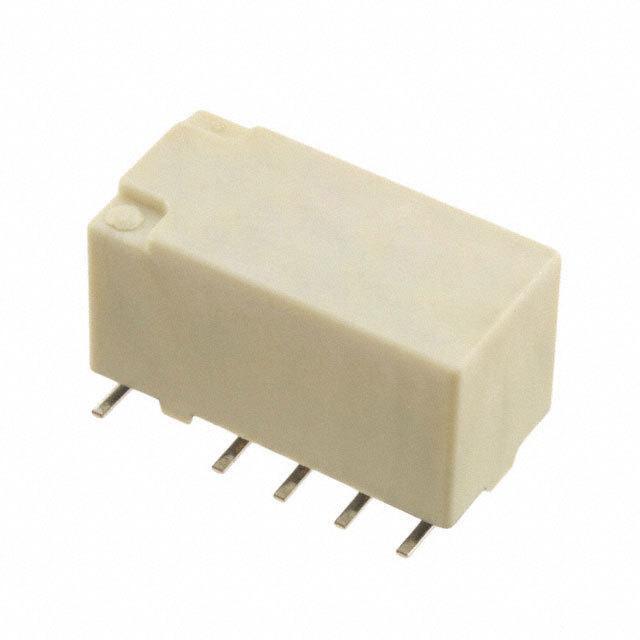

TX2SA-5V

Part No TX2SA-5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GENERAL PURPOSE DPDT 2A 5V
Datasheet
TX2SA-5V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Panasonic Electric Works
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 28.1mA
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC, 220VDC - Max
Turn On Voltage (Max) 3.75 VDC
Turn Off Voltage (Min) 0.5 VDC
Operate Time 4ms
Release Time 4ms
Features 7.5A Inrush, Sealed-Fully
Mounting SMD (SMT)
Termination Style Gull Wing
Coil Power 140 mW
Coil Resistance 178 Ohms
Temperature Range - Operating -40°C to 85°C
Win Source Part Number 048378-TX2SA-5V
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Communications & Networking, Test & Measurement, Security, Medical, Audio, Consumer Electronics
Ultra Librarian 3D Model Ultra Librarian TX2SA-5V CAD Model

Description

The Panasonic Electric Works 048378-TX2SA-5V is a DPDT (2 Form C) general-purpose relay that is designed for use in communications and networking, test and measurement, security, medical, audio, and consumer electronics. This product is mounted using SMD (SMT) technology and has a coil voltage of 5VDC.

  • Mounting: SMD (SMT) technology
  • Coil Voltage: 5VDC
  • Supply and Demand Status: Balanced
