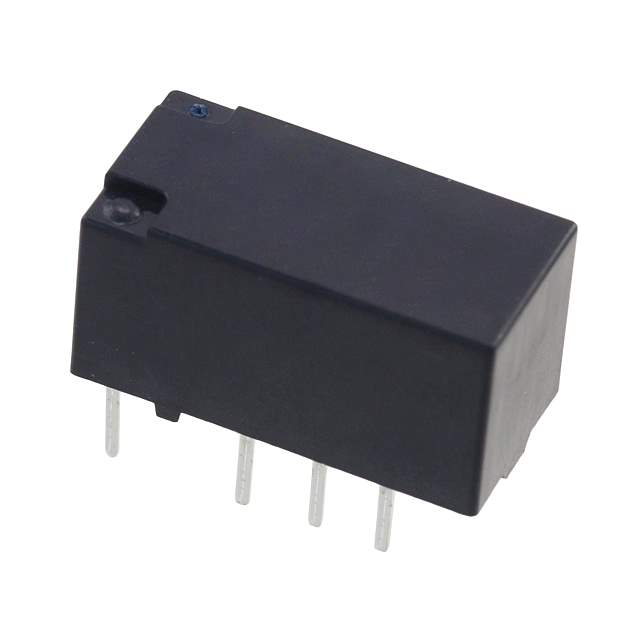

TXD2-24V

Name: TXD2-24V
Brand: Panasonic
SKU: 692445
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TXD2-24V
Manufacturer	Panasonic
Catalog	Signal Relays, Up to 2 Amps
Description	High Breakdown Voltage Relay Communications (xDSL) \| RELAY GEN PURPOSE DPDT 2A 24VDC
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Relays
Manufacturer	Panasonic Electric Works
Packaging	Tube
Mounting Style	Through Hole
Coil Voltage	24VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	2A
Switching Voltage	220VDC - Max
Coil Current	9.6mA
Coil Type	Non Latching
Termination Style	PC Pin
Seal Rating	Sealed - Fully
Must Operate Voltage	18 VDC
Must Release Voltage	2.4 VDC
Operate Time	4ms
Release Time	4ms
Temperature Range - Operating	-40°C ~ 85°C
Contact Material	Silver (Ag), Gold (Au)
Relay Type	General Purpose
Coil Resistance	2.5 kOhms
Manufacturer Pack Quantity	40
MSL Level	1 (Unlimited)
Win Source Part Number	1275133-TXD2-24V
Manufacturer Homepage	www.panasonic.com/industrial/
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian TXD2-24V CAD Model

Alternative Products

Description

The Panasonic Electric Works TXD2-24V is a relay that is designed for various applications.

Supply and Demand: Balanced
Contact Form: DPDT
Contact Material: Silver and Gold
Coil Voltage: 24VDC
Switching Voltage: 220VDC max
