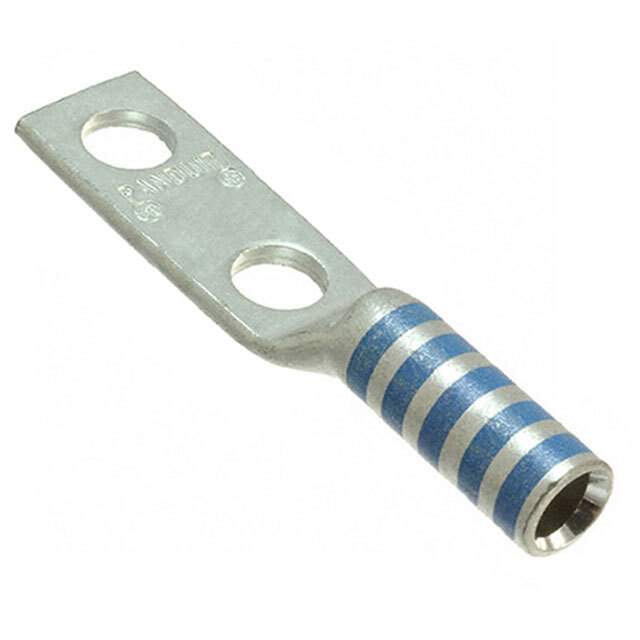

Same model may have multiple batches, images only for reference.

LCC400-12-6

Name: LCC400-12-6
Brand: Panduit Corp
SKU: 1051426
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LCC400-12-6
Manufacturer	Panduit Corp
Catalog	Rectangular Connectors
Description	CONN TERM RECT TONG 400 MCM #1/2 / Terminal Connector Rectangular Rectangular Tongue 400MCM (kcmil) 1/2 Stud
Datasheet	LCC400-12-6 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminals - Rectangular Connectors
Mfr	Panduit Corp
Series	Pan-Lug®
Package	Bulk
Terminal Type	Rectangular Tongue
Stud/Tab Size	1/2 Stud
Terminal Style	Two Stud Holes
Tab Thickness	0.180" (4.57mm)
Length - Overall	6.100" (154.94mm)
Width - Outer Edges	1.390" (35.31mm)
Mounting Type	Free Hanging (In-Line)
Termination	Crimp, Barrel
Wire Gauge	400MCM (kcmil)
Insulation	Non-Insulated
Color	Blue
Contact Finish	Electro-Tin
Contact Material	Copper
Diameter - Barrel ID	0.760" (19.30mm)
Diameter - Barrel OD	0.950" (24.13mm)
Diameter - Ring ID	0.530" (13.46mm)
Base Product Number	LCC400
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.90.4000
Other Names	298-14828,07498390260,LCC400-12-6-ND
Standard Package	1
Win Source Part Number	1051426-LCC400-12-6
Ultra Librarian 3D Model	Ultra Librarian LCC400-12-6 CAD Model

Alternative Products

Description

The Pan-Lug™ series by Panduit Corp offers a non-insulated rectangular tongue terminal connector with a two stud holes terminal style.

Wire gauge: 400MCM (kcmil)
Color: blue
Contact material: copper
Contact finish: electro-tin
Barrel ID: 0.760 inch (19.30mm)
Barrel OD: 0.950 inch (24.13mm)
Width (outer edges): 1.390 inch (35.31mm)
Length (overall): 6.100 inch (154.94mm)
Packaging: bulk
Cross-reference: alternative parts
