Same model may have multiple batches, images only for reference.

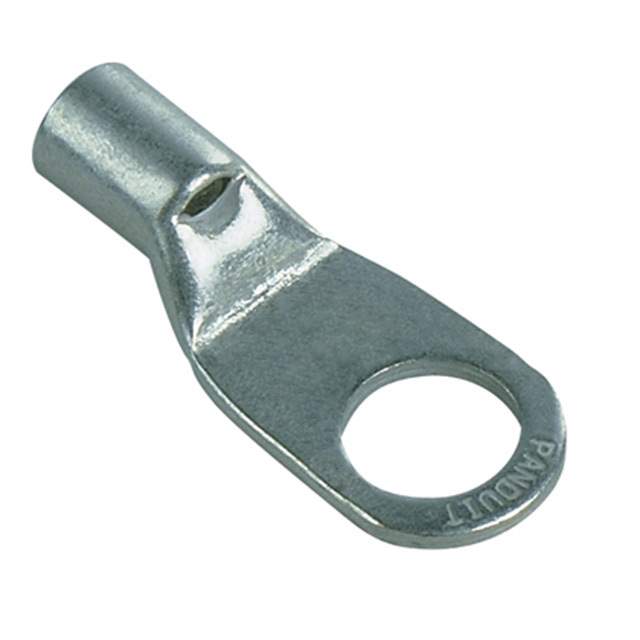

S6-10R-E Real Image
Same model may have multiple batches, images only for reference.

S6-10R-E

Part No S6-10R-E
Manufacturer Panduit Corp
Catalog Terminals
Datasheet
S6-10R-E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals - Ring Connectors
Mfr Panduit Corp
Series Pan-Term®
Package Bulk
Product Status Obsolete
Terminal Type Flat Sided
Stud/Tab Size 10 Stud
Thickness 0.090" (2.29mm)
Width - Outer Edges 0.450" (11.43mm)
Length - Overall 1.200" (30.48mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp, Funnel Opening
Wire Gauge 6 AWG
Insulation Non-Insulated
Contact Material Copper
Contact Finish Tin
Base Product Number S6-10
Other Names S6-10R-E,298-11883
Standard Package 20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1285171-S6-10R-E
Ultra Librarian 3D Model Ultra Librarian S6-10R-E CAD Model

Description

The electronic component with the part number 1285171-S6-10R-E is a connector belonging to the Pan-Term series.

  • Termination: Crimp and funnel opening
  • Contact Finish: Tin
  • Package: Bulk
  • Wire Gauge: 6 AWG
  • Contact Material: Copper
  • Insulation: Non-Insulated
  • Terminal Type: Flat-Sided
  • Thickness: 0.090" (2.29mm)
  • Width: 0.450" (11.43mm)
  • Length: 1.200" (30.48mm)
  • Stud/Tab Size: 10 Stud
  • Mounting Type: Free hanging (in-line)
  • Manufacturer: Panduit Corp
  • ECCN Category: EAR99
