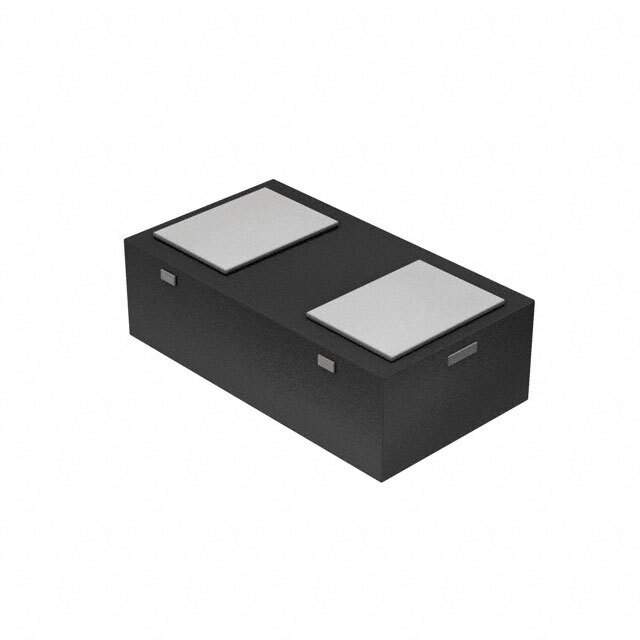

BAT54FN2_R1_00001 Real Image
Same model may have multiple batches, images only for reference.

BAT54FN2_R1_00001

Part No BAT54FN2_R1_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description DFN 2L, SKY
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 11 Weeks
Features Diode Schottky 30 V 200mA Surface Mount 2-DFN (1x0.6)
Manufacturer Panjit
Package Reel - TR
Speed Small Signal =< 200mA (Io), Any Speed
Mounting Surface Mount
Package 0402 (1006 Metric)
Case / Package 2-DFN (1x0.6)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number 3757-BAT54FN2_R1_00001DKR, 3757-BAT54FN2_R1_00001CT, 3757-BAT54FN2_R1_00001TR
Quantity per package 8000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 912854-BAT54FN2_R1_00001
Ultra Librarian 3D Model Ultra Librarian BAT54FN2_R1_00001 CAD Model

Description

The Panjit electronic component is a Schottky diode that is designed to handle a maximum voltage of 30V and a current of 200mA.

  • Maximum Voltage: 30V
  • Current: 200mA
  • Mounting: Surface Mount
  • Package: Reel - TR
  • Package Size: 0402 (1006 Metric)
  • Category: Discrete Semiconductor Products
  • Case/Package: 2-DFN (1x0.6)
  • Quantity per Package: 8000
  • Estimated Production Lead Time: 11 weeks
  • ECCN: EAR99 compliant
  • MSL Level: 1 (Unlimited)
  • Series: DURIS® E 3 series
  • Lighting: White, cool 5000K LED lighting series
  • Current: 20mA
  • Operating Temperature Range: -40°C ~ 105°C
