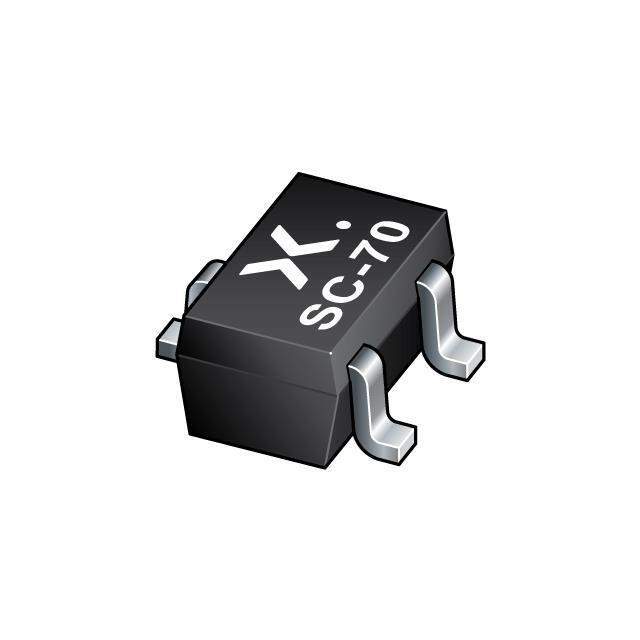

BAW56W T/R Real Image
Same model may have multiple batches, images only for reference.

BAW56W T/R

Part No BAW56W T/R
Manufacturer Panjit
Catalog Diodes, Rectifiers - Arrays
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products
Family Diodes,Rectifiers - Arrays
Manufacturer Panjit
Win Source Part Number 231842-BAW56W T/R
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BAW56W T/R CAD Model

Description

Overview

The BAW56W T/R is an advanced double diode designed to support a variety of high-speed and high-frequency applications. Its efficient design minimizes power loss and maximizes signal integrity.

Features and Benefits

  • Compact yet robust SOT-323 package design
  • High switching speed and efficiency
  • Low forward voltage and recovery time
  • Wide operational temperature range

Applications

  • Telecommunication systems
  • Fast signal processing circuits
  • Protection circuits against reverse polarity
  • Battery charging circuits

Additional Details: The BAW56W T/R operates efficiently across a wide voltage range and is engineered for reliability in both consumer and industrial electronics.
