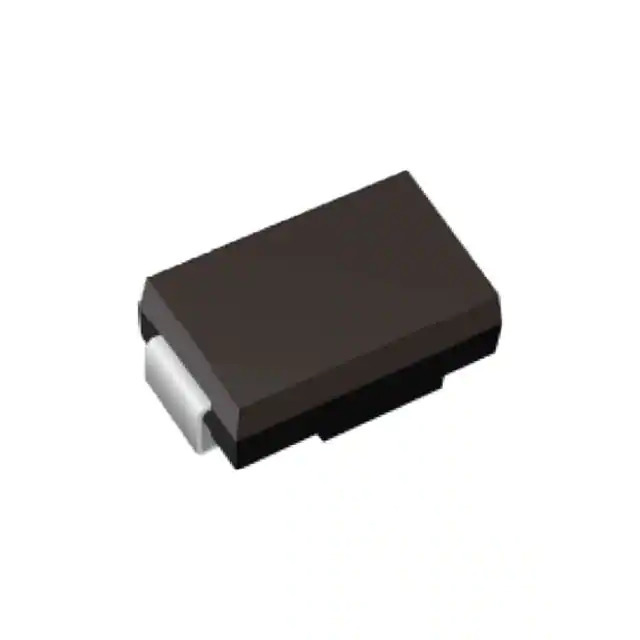

Same model may have multiple batches, images only for reference.
GS1A_R1_00001 Panjit
Same model may have multiple batches, images only for reference.

GS1A_R1_00001

Part No GS1A_R1_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 50V 1A SMA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Panjit International Inc.
Series -
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 µA @ 50 V
Capacitance @ Vr, F 12pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Supplier Device Package SMA (DO-214AC)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number GS1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368205-GS1A_R1_00001
Ultra Librarian 3D Model Ultra Librarian GS1A_R1_00001 CAD Model

Description

The 1368205-GS1A_R1_00001 is a single rectifier diode from Panjit International Inc.

  • Category: Discrete Semiconductor Products
  • Maximum Reverse Voltage: 50V
  • Average Rectified Current: 1A
  • Forward Voltage Drop: 1.1V @ 1A
  • Recovery Time: Greater than 500ns
  • Reverse Leakage Current: 1 µA @ 50V
  • Capacitance: 12pF @ 4V and 1MHz
  • Mounting: Surface Mountable
  • Package: DO-214AC, SMA
  • Operating Temperature: -55°C to 150°C
  • Packaging: Tape and Reel
  • Manufacturer: Panjit International Inc.
