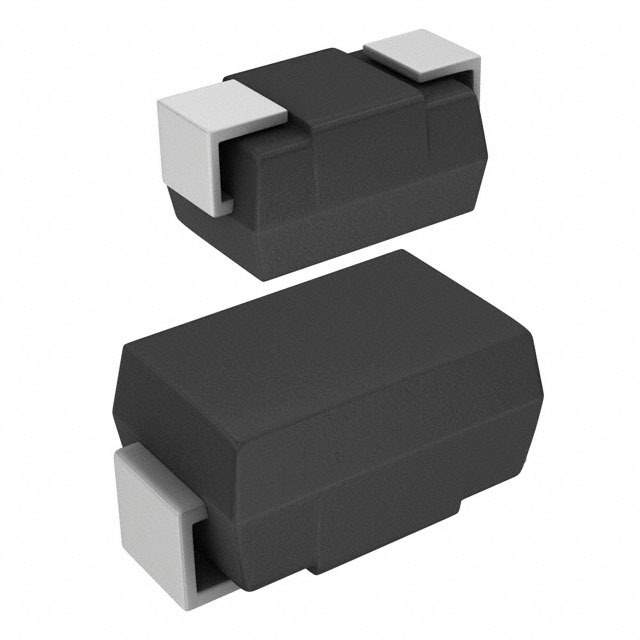

The GS1KW is a surface-mount rectifier diode manufactured by Panjit. It is designed for general-purpose rectification applications in a wide range of electronic circuits.

Applications:

• General purpose rectification
• Freewheeling diode applications
• Reverse polarity protection
• AC-DC adapters
• Power supplies

Features:

• Surface Mount Package
• High surge current capability
• Low forward voltage drop
• High reliability
• RoHS compliant

Benefits:

• Efficient power conversion due to low forward voltage drop.
• Compact design allows for use in space-constrained applications.
• Protection against voltage spikes and surges.
• Reliable performance over a wide range of operating conditions.
• Environmentally friendly due to RoHS compliance.

Specifications:

The GS1KW features a repetitive peak reverse voltage (VRRM) of 800V, a maximum average forward rectified current (IF(AV)) of 1.0A, and a peak forward surge current (IFSM) of 50A. It has a typical forward voltage drop (VF) of 1.1V at 1.0A and a reverse leakage current (IR) of 5 μA at VRRM. The operating junction temperature range is -55°C to +150°C. The diode is packaged in a surface-mount SMA package, which is suitable for automated assembly and provides good thermal characteristics. Its high VRRM makes it suitable for high voltage applications. The low leakage current contributes to efficient operation and reduced power loss. The robust construction and design ensure long-term reliability in demanding industrial and consumer electronic applications.
