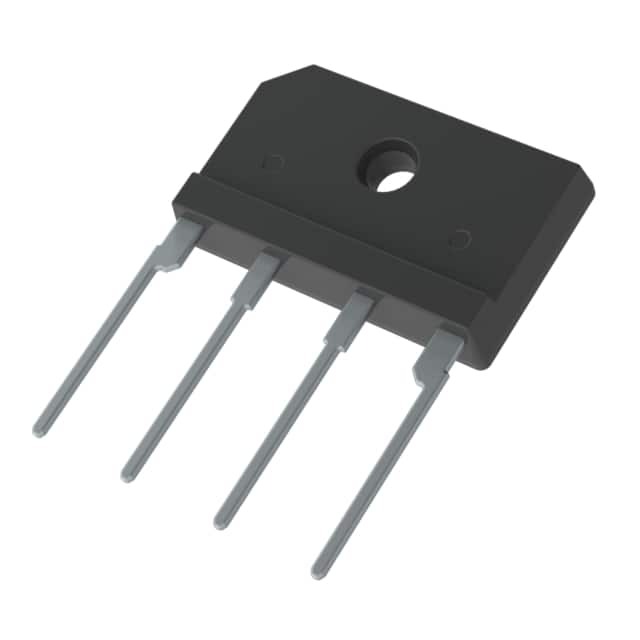

KBJ2010_T0_00601 Panjit
Same model may have multiple batches, images only for reference.

KBJ2010_T0_00601

Part No KBJ2010_T0_00601
Manufacturer Panjit
Catalog Bridge Rectifiers
Description KBJ PACKAGE, 20A/1000V STANDARD  /  Bridge Rectifier Single Phase Standard 1 kV Through Hole KBJ
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Bridge Rectifiers
Mfr Panjit International Inc.
Package Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 20 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 20 A
Current - Reverse Leakage @ Vr 5 µA @ 1 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-SIP, KBJ
Supplier Device Package KBJ
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-KBJ2010_T0_00601
Standard Package 1,000
Win Source Part Number 1158262-KBJ2010_T0_00601
Ultra Librarian 3D Model Ultra Librarian KBJ2010_T0_00601 CAD Model

Description

The Panjit International Inc. KBJ2010_T0_00601 is a high-quality bridge rectifier designed for use in discrete semiconductor products.

  • Diode Type: Single-phase
  • Current Average Rectified (Io): 20A
  • Voltage Forward (Vf): 1.1V @ 20A
  • Current Reverse Leakage: 5µA @ 1V
  • Voltage Peak Reverse: 1kV
  • Mounting Type: Through-hole
  • Package: 4-SIP, KBJ
  • Supplier Device Package: KBJ
  • Temperature Range: -55°C to 150°C (TJ)
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8541.10.0080
