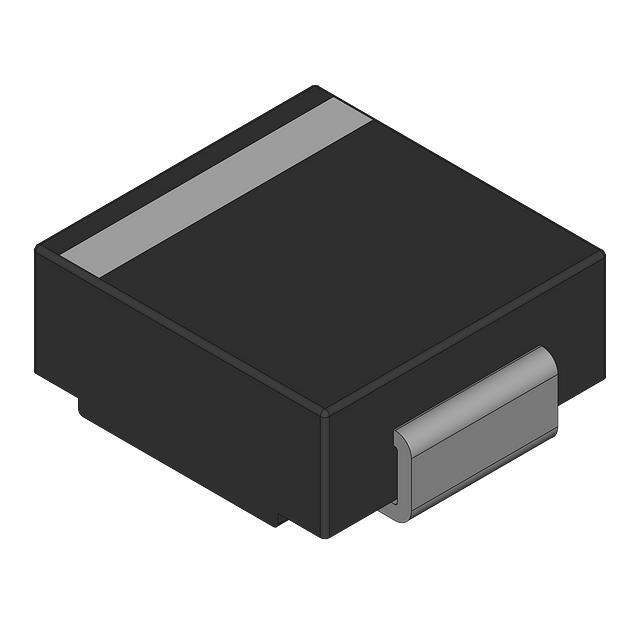

MB520_R1_00001 Real Image
Same model may have multiple batches, images only for reference.

MB520_R1_00001

Part No MB520_R1_00001
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description SMC, SKY  /  Diode Schottky 200 V 5A Surface Mount SMC (DO-214AB)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Panjit International Inc.
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 900 mV @ 5 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 50 µA @ 200 V
Mounting SMD (SMT)
Package / Case DO-214AB, SMC
Supplier Device Package SMC (DO-214AB)
Operating Temperature - Junction -65°C ~ 175°C
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Names 3757-MB520_R1_00001TR,3757-MB520_R1_00001CT,3757-MB520_R1_00001DKR
Standard Package 800
Win Source Part Number 965004-MB520_R1_00001
Ultra Librarian 3D Model Ultra Librarian MB520_R1_00001 CAD Model

Description

The MB520_R1_00001 is a Schottky diode from Panjit International Inc. that is designed for use in rectification applications.

  • Application: Rectification
  • Diode Type: Fast Recovery
  • Package: SMC (DO-214AB)
  • Average Rectified Current: 5A
  • Maximum Reverse Voltage: 200V
  • Forward Voltage: 900mV @ 5A
  • Reverse Leakage Current: 50µA @ 200V
  • Packaging: Tape and Reel
  • Standard Package: 800 units
  • Operating Temperature Range: -65°C to 175°C
