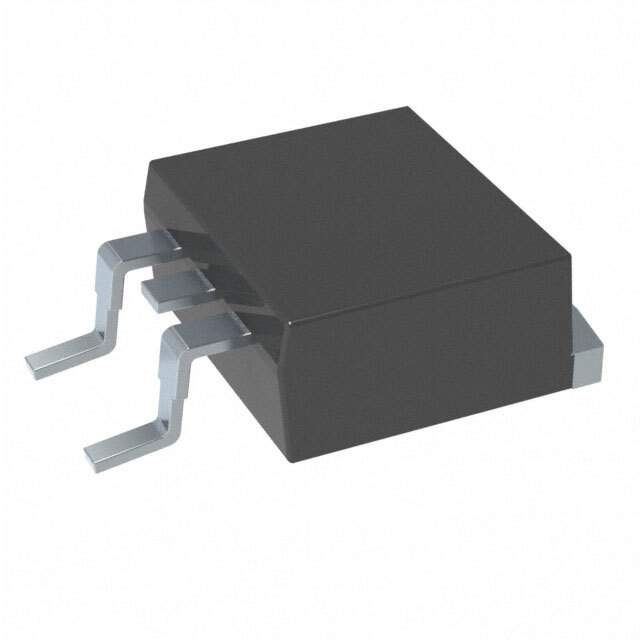

The MBR20200DC is a dual common cathode Schottky barrier rectifier designed for high-frequency switching power supplies and freewheeling diode applications. It features low forward voltage drop and high surge current capability, which makes it suitable for applications requiring high efficiency and reliability.

Applications:

• Switching Power Supplies
• Freewheeling Diodes
• Polarity Protection Applications
• DC-DC Converters
• High-Frequency Rectification

Features:

• Low Forward Voltage Drop
• High Surge Current Capability
• High-Frequency Operation
• Guard Ring Structure for Transient Protection
• High Reliability
• Dual Common Cathode Configuration

Benefits:

• Improved Efficiency: Low forward voltage drop reduces power losses.
• Enhanced Reliability: High surge current capability ensures robustness under transient conditions.
• Reduced Heat Dissipation: Low forward voltage drop minimizes heat generation.
• Simplified Circuit Design: Dual diode configuration saves space and reduces component count.
• Protection Against Transients: Guard ring structure enhances transient voltage protection.

Additional Details:

The MBR20200DC has a maximum repetitive peak reverse voltage of 200V and a maximum average forward current of 20A (10A per diode). Its low forward voltage drop minimizes power dissipation and improves overall system efficiency. The high surge current capability allows the device to withstand large inrush currents during startup or transient events. The device is typically packaged in a TO-220AB package, providing good thermal performance. The operating junction temperature range is typically -65°C to +175°C.
