Same model may have multiple batches, images only for reference.

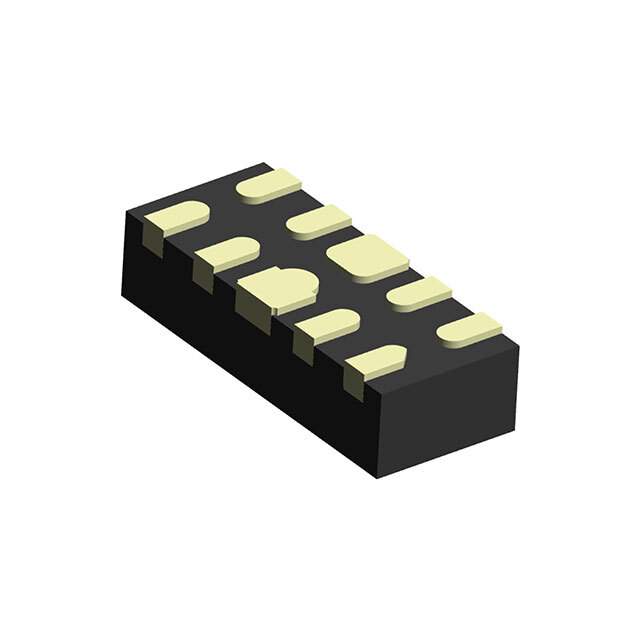

PJE5UFN10A_R1_00001 Real Image
Same model may have multiple batches, images only for reference.

PJE5UFN10A_R1_00001

Part No PJE5UFN10A_R1_00001
Manufacturer Panjit
Catalog TVS - Diodes
Description DFN2510-10L, TVS/ESD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 3 Weeks
Features 13V Clamp 2.5A (8/20µs) Ipp Tvs Diode Surface Mount DFN2510-10L
Manufacturer Panjit
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package 10-UFDFN
Case / Package DFN2510-10L
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 3757-PJE5UFN10A_R1_00001DKR, 3757-PJE5UFN10A_R1_00001TR, 3757-PJE5UFN10A_R1_00001CT
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 889939-PJE5UFN10A_R1_00001
Ultra Librarian 3D Model Ultra Librarian PJE5UFN10A_R1_00001 CAD Model

Description

The Panjit electronic component is a surface mount DFN2510-10L package.

  • Clamp: 13V
  • Ipp Tvs Diode: 2.5A (8/20µs)
  • Operating Temperature Range: -55°C ~ 150°C (TJ)
