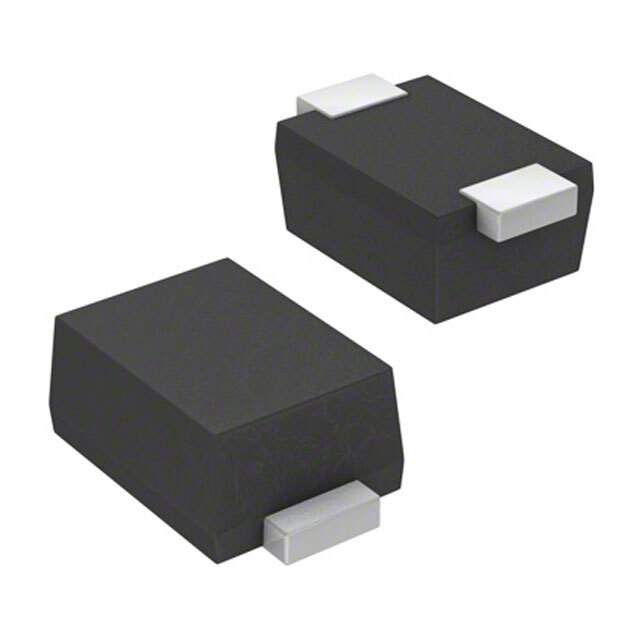

PJSD05TM Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer Panjit
Win Source Part Number 276825-PJSD05TM
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PJSD05TM CAD Model

Description

The Panjit 276825-PJSD05TM is a surface mount Schottky diode that is commonly used in electronic circuits for rectification and power conversion.

  • Features: low forward voltage drop, high current carrying capability
  • Applications: high efficiency power conversion applications
  • Maximum Reverse Voltage: 50V
  • Maximum Forward Current: 500mA
  • Suitable for: DC-DC converters, voltage regulators, and power supplies
