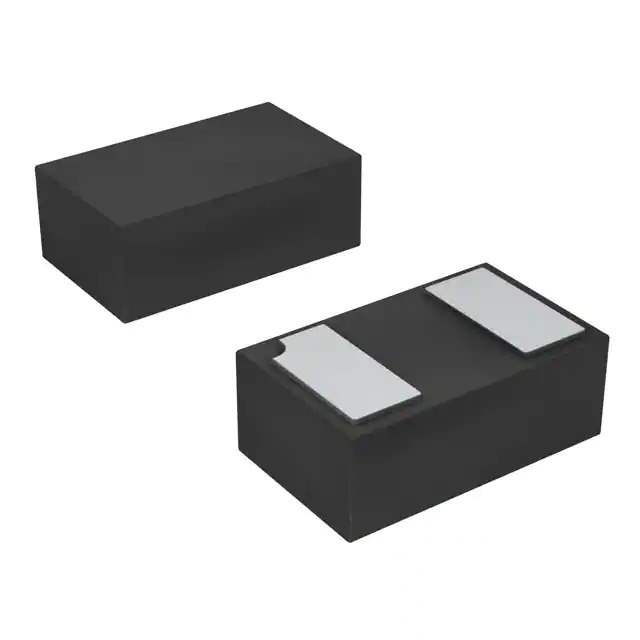

SBA0520Q-AU_R1_000A1 Real Image
Same model may have multiple batches, images only for reference.

SBA0520Q-AU_R1_000A1

Part No SBA0520Q-AU_R1_000A1
Manufacturer Panjit
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 500MA 2DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Panjit
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 20 V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 480 mV @ 500 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 100 µA @ 20 V
Mounting Type Surface Mount
Package / Case 0402 (1006 Metric)
Supplier Device Package 2-DFN (1x0.6)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number SBA0520
Standard Package 8,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1091311-SBA0520Q-AU_R1_000A1
Ultra Librarian 3D Model Ultra Librarian SBA0520Q-AU_R1_000A1 CAD Model

Description

The Panjit 1091311-SBA0520Q-AU_R1_000A1 is a fast recovery Schottky diode designed for automotive applications.

  • Maximum DC Reverse Voltage: 20V
  • Average Rectified Current: 500mA
  • Voltage Forward: 480mV @ 500mA
  • Reverse Leakage Current: 100μA @ 20V
  • Package: 0402 (1006 Metric)
  • Operating Temperature Range: -55°C to 150°C
  • Mounting: Surface Mount
  • Package: 2-DFN (1x0.6)
  • Series: SBA0520
  • Market Status: Active
