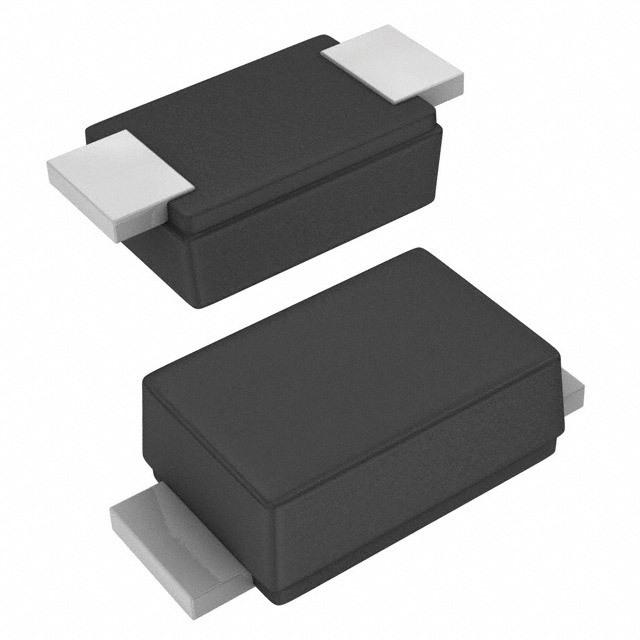

SMF26A_R1_00001 Panjit
Same model may have multiple batches, images only for reference.

SMF26A_R1_00001

Part No SMF26A_R1_00001
Manufacturer Panjit
Catalog TVS - Diodes
Description SURFACE MOUNT TRANSIENT VOLTAGE
Datasheet
SMF26A_R1_00001 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Panjit
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 26V
Voltage - Breakdown (Min) 28.9V
Voltage - Clamping (Max) @ Ipp 42.1V
Current - Peak Pulse (10/1000µs) 4.8A
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123FL
Base Product Number SMF26
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 328921-SMF26A_R1_00001
Ultra Librarian 3D Model Ultra Librarian SMF26A_R1_00001 CAD Model

Description

The SMF26A_R1_00001 is a Zener-type transient voltage suppressor diode designed for general-purpose circuit protection.

  • Voltage - Reverse Standoff: 26V
  • Voltage - Breakdown: 28.9V
  • Voltage - Clamping: 42.1V @ peak pulse power of 200W
  • Current - Peak Pulse: 4.8A
  • Mounting: Surface mount device
  • Package: SOD-123F package
  • Manufacturer: Panjit
  • Product Status: Active
