Products specifications Report Issue?

Manufacturer Panjit
Win Source Part Number 1264328-TB8S
Manufacturer Homepage www.panjit.com.tw
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TB8S CAD Model

Description

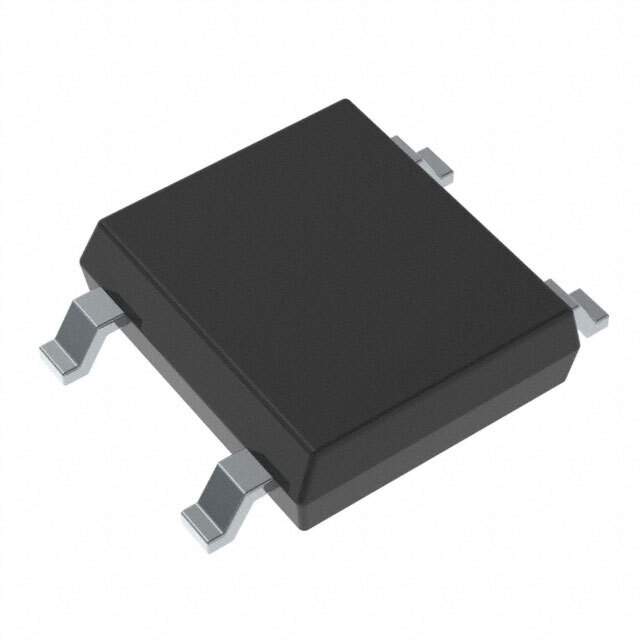

The TB8S is a surface-mount glass passivated single-phase bridge rectifier manufactured by Panjit. This component is designed to convert alternating current (AC) to direct current (DC) efficiently. It is commonly used in power supplies and various electronic devices.

Applications

  • Power supplies
  • Adapters
  • Battery chargers
  • Lighting systems
  • Home appliances

Features

  • Glass passivated chip junction
  • Ideal for automated placement
  • High surge current capability
  • High temperature soldering guaranteed
  • Very low forward voltage drop
  • RoHS compliant

Benefits

  • Efficient AC to DC conversion
  • Reliable performance in various applications
  • Easy to integrate into automated assembly lines
  • Protects circuits from voltage spikes
  • Reduces power loss and improves efficiency
  • Environmentally friendly

Specifications

The TB8S features a repetitive peak reverse voltage of 800V and a maximum average forward rectified current of 0.8A. The surge overload rating is 30A. The operating temperature range is typically -55°C to +150°C. The package is a surface mount ABS package. The forward voltage is typically 1V at 0.4A. The reverse recovery time is typically 2.5 us.

The TB8S is a reliable and efficient bridge rectifier suitable for a wide range of applications where AC to DC conversion is required. Its compact size and surface mount design make it ideal for modern electronic devices.
