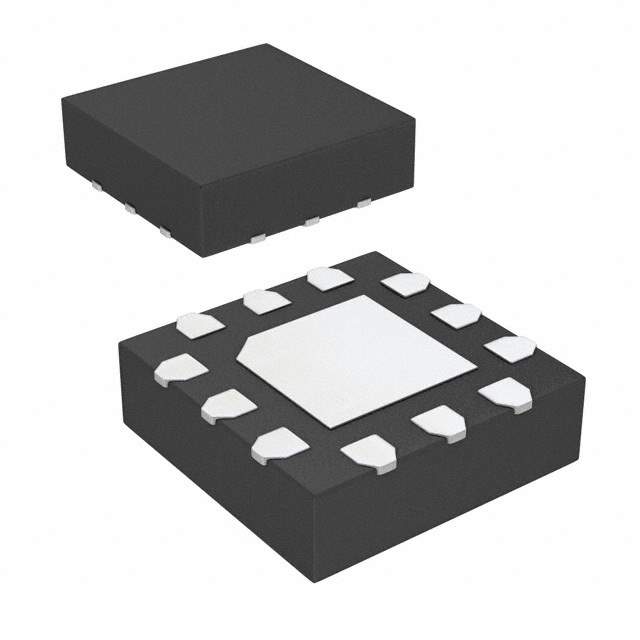

PE42422MLAA-Z Real Image
Same model may have multiple batches, images only for reference.

PE42422MLAA-Z

Part No PE42422MLAA-Z
Manufacturer Peregrine Semiconductor
Catalog RF Switches
Description IC RF SWITCH SPDT 50 OHM 12QFN
Datasheet
PE42422MLAA-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Peregrine Semiconductor
Packaging Reel - TR
Status Active
Frequency - Lower 100MHz
Frequency - Upper 6GHz
Isolation @ Frequency 17dB @ 6GHz (typ)
Insertion Loss @ Frequency 0.9dB @ 6GHz
IIP3 70dBm (typ)
Topology Reflective
Circuit SPDT
Impedance 50 Ohm
Temperature Range - Operating -40°C to 85°C
Supply Voltage - Operating 2.3 V to 5.5 V
RF Type General Purpose
Case / Package 12-QFN (2x2)
Win Source Part Number 1087285-PE42422MLAA-Z
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name PE42422MLAA-Z
Introduction Date August 31, 2012
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian PE42422MLAA-Z CAD Model

Description

The PE42422MLAA-Z is a reflective-type circuit custom electronic component manufactured by Peregrine Semiconductor.

  • Frequency Range: 100MHz to 6GHz
  • Applications: RF/IF and RFID
  • Status: active
  • Supply and Demand Status: balanced
  • Applications: audio, communications and networking, consumer electronics, medical, and industrial
