Same model may have multiple batches, images only for reference.

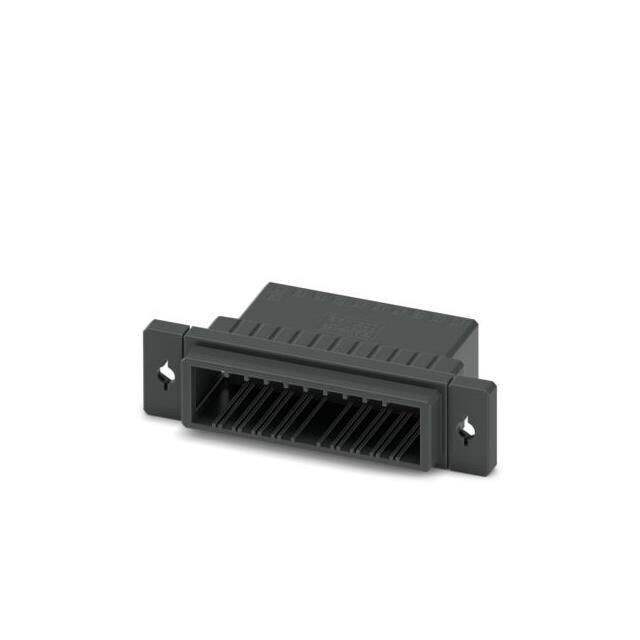

1340706 Phoenix Contact
Same model may have multiple batches, images only for reference.

1340706

Part No 1340706
Manufacturer Phoenix Contact
Catalog Rectangular Connectors
Description CONN PLUG HSG 20POS 3.81MM
Datasheet
1340706 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310184-1340706
Manufacturer Phoenix Contact
Category Connectors, Interconnects > Rectangular Connectors > Rectangular Connector Housings
Packaging Bulk
Part Status Active
Connector Type Plug
Contact Type Tab
Number of Positions 20
Pitch 0.150" (3.81mm)
Number of Rows 2
Mounting Type Panel Mount
Contact Termination Crimp
Ultra Librarian 3D Model Ultra Librarian 1340706 CAD Model

Description

Advantages • Cost-effective connection of crimped conductors in large quantities • Small component size for applications where space is at a premium • Contacts arranged in a double row enable high packing density in a compact area • Intuitive locking mechanism prevents accidental disconnection<br />• Tools for automatic crimping available as an option
