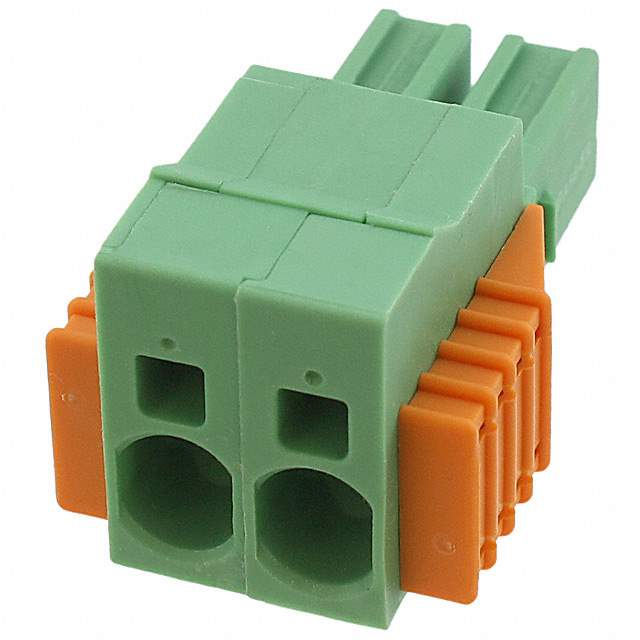

Same model may have multiple batches, images only for reference.

1718481

Name: 1718481
Brand: Phoenix Contact
SKU: 1332187
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	1718481
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 2POS STR 7.62MM / 2 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
Datasheet	1718481 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Female Sockets
Number of Positions	2
Positions Per Level	2
Number of Levels	1
Pitch	0.300" (7.62mm)
Plug Wire Entry	180°
Termination Style	Screwless - Push-In Spring
Mounting	Free Hanging (In-Line)
Current - IEC	41A
Voltage - IEC	1 kV
Current - UL	35 A
Voltage - UL	600 V
Wire Gauge or Range - AWG	8-24 AWG
Wire Gauge or Range - mm2	0.2-10mm²
Color	Green
Contact Mating Finish	Tin
Features	Latch Lock
Material Flammability Rating	UL94 V-0
Wire Strip Length	15mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.780" (19.80mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	1718481-ND,277-6696,SPC 5/ 2-STCL-7,62,SPC5/2-STCL-7,62
Standard Package	50
Win Source Part Number	1332187-1718481
Ultra Librarian 3D Model	Ultra Librarian 1718481 CAD Model

Description

The Phoenix Contact 1332187-1718481 is a plug with female sockets, suitable for connectors, interconnects, and terminal blocks.

Positions per Level: 2
Level: 1
Pitch: 0.300 inches (7.62mm)
Plug Wire Entry: 180 degrees
Termination Style: Screwless push-in spring
Current Rating (IEC): 41A
Current Rating (UL): 35A
Voltage Rating (IEC): 1kV
Voltage Rating (UL): 600V
Wire Gauge Range: 8-24 AWG
Wire Size Range: 0.2-10mm2
Color: Green
Latch Lock Feature: Yes
Contact Mating Finish: Tin
Housing Material: Polyamide (PA) or nylon
Material Flammability Rating: UL94 V-0
Mounting Type: Free hanging (in-line)
Insulation Height: 0.780 inches (19.80mm)
Wire Strip Length: 15mm
