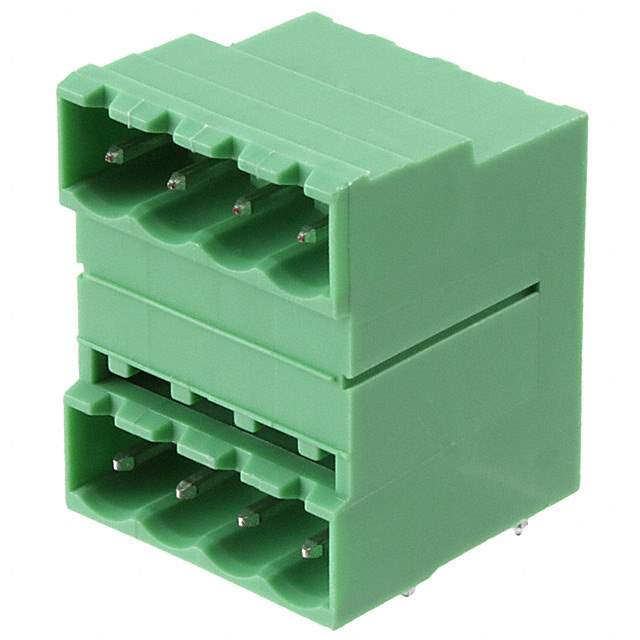

Same model may have multiple batches, images only for reference.

1736713

Name: 1736713
Brand: Phoenix Contact
SKU: 1332358
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1736713
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 8POS 90DEG 5.08MM / 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	8
Positions Per Level	4
Number of Levels	2
Pitch	0.200" (5.08mm)
Header Orientation	90°, Right Angle
Termination Style	Solder
Mounting	Through Hole
Current - IEC	10A
Voltage - IEC	630 V
Current - UL	15 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Housing Material	Polyamide (PA), Nylon
Contact Tail Length	0.138" (3.50mm)
Insulation Height	1.122" (28.50mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	277-1401,MDSTB2,5/4-G1-5,08,MDSTB 2,5/4-G1-5,08,277-1401-NDR
Standard Package	50
Win Source Part Number	1332358-1736713
Ultra Librarian 3D Model	Ultra Librarian 1736713 CAD Model

Alternative Products

Description

The Phoenix Contact 1332358-1736713 is a male pin header connector designed for use in electronic applications.

Positions: 8
Positions per Level: 4
Pitch: 0.200 inches (5.08mm)
Shrouding: Shrouded (4 Sides)
Orientation: 90-Degree, Right-Angle
Termination: Solder
Current Rating: 10A (IEC) / 15A (UL)
Voltage Rating: 630V (IEC) / 300V (UL)
Contact Mating Finish: Tin
Housing Material: Polyamide (PA) Nylon
Flammability Rating: UL94 V-0
Packaging: Bulk
Mounting Style: Through Hole
Contact Tail Length: 0.138 inches (3.50mm)
