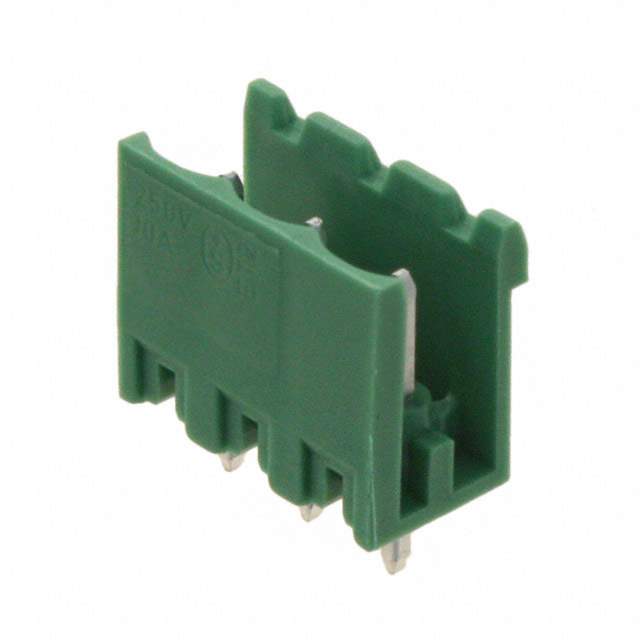

Same model may have multiple batches, images only for reference.

1753453

Name: 1753453
Brand: Phoenix Contact
SKU: 1332199
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1753453
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK HDR 3POS VERT 5MM / 3 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) Vertical Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Header, Male Pins, Shrouded (2 Side)
Number of Positions	3
Positions Per Level	3
Number of Levels	1
Pitch	0.197" (5.00mm)
Header Orientation	Vertical
Termination Style	Solder
Mounting	Through Hole
Current - IEC	12A
Voltage - IEC	400 V
Current - UL	12 A
Voltage - UL	300 V
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Housing Material	Polyamide (PA), Nylon
Contact Tail Length	0.154" (3.90mm)
Insulation Height	0.472" (12.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	MSTBV2,5/3-G,277-1074,MSTBV 2.5/3-G
Standard Package	250
Win Source Part Number	1332199-1753453
Ultra Librarian 3D Model	Ultra Librarian 1753453 CAD Model

Description

The Phoenix Contact 1332199-1753453 is a header connector with male pins and shrouded 2 sides.

Positions: 3
Positions per Level: 3
Level: 1
Pitch: 0.197 inches (5.00mm)
Header Orientation: Vertical
Termination Style: Solder
Contact Mating Finish: Tin
Housing Material: Polyamide (PA) and nylon
Material Flammability Rating: UL94 V-0
Rated Current (IEC): 12A
Rated Voltage (IEC): 400V
Rated Current (UL): 12A
Rated Voltage (UL): 300V
ROHS3 Compliant: Yes
Packaging: Bulk
Standard Package: 250 pieces
