1757093

Part No 1757093
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets

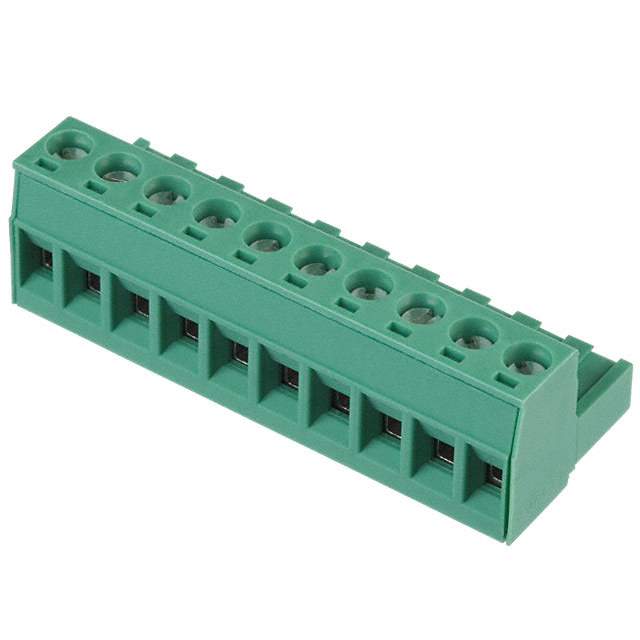

Description TERM BLOCK PLUG 10POS STR 5.08MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr Phoenix Contact
Series COMBICON MSTB
Package Bulk
Product Status Active
Type Plug, Female Sockets
Number of Positions 10
Positions Per Level 10
Number of Levels 1
Pitch 0.200" (5.08mm)
Plug Wire Entry 180°
Termination Style Screw - Rising Cage Clamp
Mounting Type Free Hanging (In-Line)
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 15 A
Voltage - UL 300 V
Wire Gauge or Range - AWG 12-30 AWG
Wire Gauge or Range - mm2 0.2-2.5mm2
Color Green
Contact Mating Finish Tin
Features Retention Latches (Non-Wire Side)
Material Flammability Rating UL94 V-0
Screw Size M3
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length 7mm
Housing Material Polyamide (PA), Nylon
Insulation Height 0.591" (15.00mm)
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 854164-1757093
Ultra Librarian 3D Model Ultra Librarian 1757093 CAD Model

Description

Phoenix Contact 1757093 is a connector component in the Headers, Plugs and Sockets category, typically selected for PCB-to-wire or board-level interconnect needs where reliable signal or power termination is important. Engineers often consider Phoenix Contact connectivity products for industrial control panels, automation assemblies, interface modules, power distribution subassemblies, and other equipment that requires consistent mating performance and serviceable field connections. This part is positioned for design teams looking for a recognized manufacturer with broad adoption in industrial electronics and control-system environments. Because the exact technical parameters were not provided here, designers should confirm fit, pitch, current handling, and mounting details in the latest official datasheet before release to production. Lifecycle status for 1757093 is currently listed as information not available, so sourcing and long-term design planning should include manufacturer verification. RoHS compliance information is also not available in the provided data and should be confirmed through official Phoenix Contact compliance documentation before procurement.
