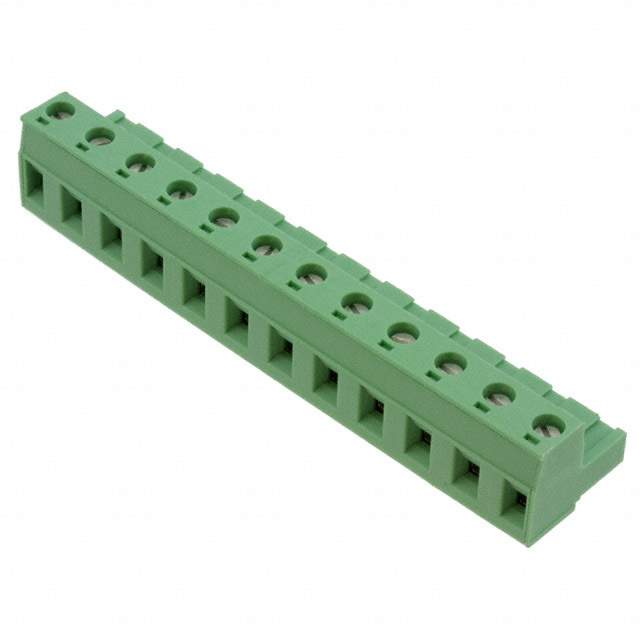

1767106 Real Image1 1767106 Real Image2
Same model may have multiple batches, images only for reference.
1767106 Real Image1 1767106 Real Image2
1767106 Real Image1 1767106 Real Image2
Same model may have multiple batches, images only for reference.

1767106

Part No 1767106
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK PLUG 12POS STR 7.62MM / 12 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Mfr Phoenix Contact
Series COMBICON GMSTB
Package Bulk
Type Plug, Female Sockets
Number of Positions 12
Positions Per Level 12
Number of Levels 1
Pitch 0.300" (7.62mm)
Header Orientation -
Plug Wire Entry 180°
Termination Style Screw - Rising Cage Clamp
Mounting Type Free Hanging (In-Line)
Current - IEC 12A
Voltage - IEC 1 kV
Current - UL 15 A
Voltage - UL 300 V
Wire Gauge or Range - AWG 12-30 AWG
Wire Gauge or Range - mm2 0.2-2.5mm²
Color Green
Temperature Range - Operating -
Contact Mating Finish Tin
Features Retention Latches (Non-Wire Side)
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size M3
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length 7mm
Contact Material -
Housing Material Polyamide (PA), Nylon
Contact Tail Length -
Insulation Height 0.591" (15.00mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Standard Package 50 pcs
Win Source Part Number 1380564-1767106
Ultra Librarian 3D Model Ultra Librarian 1767106 CAD Model

Description

The COMBICON GMSTB series terminal block header is a high-quality connector manufactured by Phoenix Contact.

  • Product Series: COMBICON GMSTB
  • Connector Type: Plug and Female Socket
  • Positions per Level: 12
  • Number of Levels: 12
  • Pitch: 0.300 inches (7.62mm)
  • Current: 12A (IEC) and 15A (UL)
  • Voltage Rating: 1kV (IEC) and 300V (UL)
  • Wire Gauge: 12 to 30 AWG
  • Color: Green
  • Features: Retention Latches
