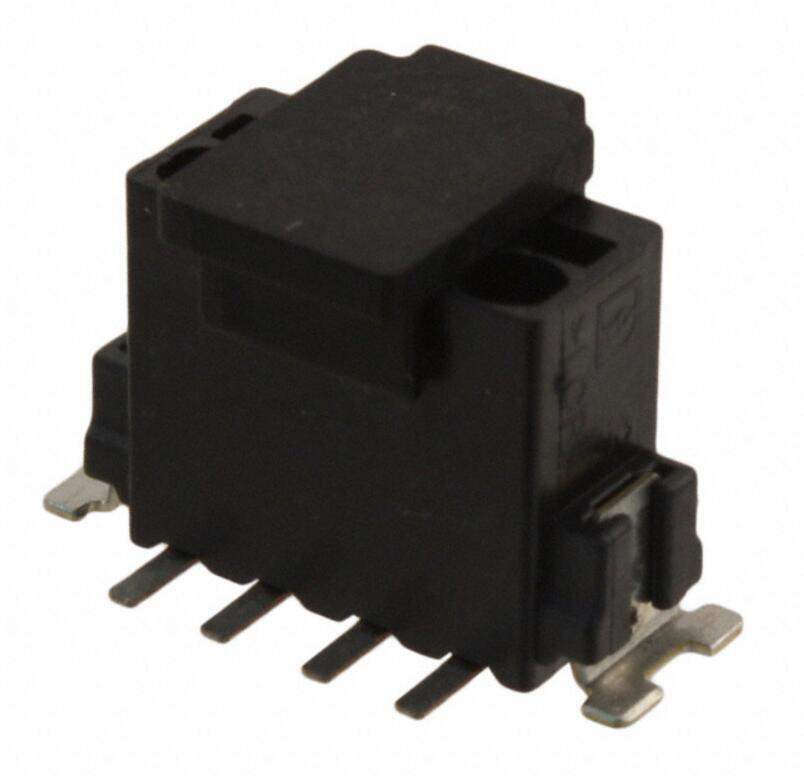

Same model may have multiple batches, images only for reference.
1771114 Phoenix Contact
Same model may have multiple batches, images only for reference.

1771114

Part No 1771114
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description TERM BLK 4P TOP ENTRY 2.5MM SMD
Datasheet
1771114 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Category Connectors, Interconnects Terminal Blocks Wire to Board
Win Source Part Number WS1204419-1771114
Series COMBICON PTSM
Manufacturer Phoenix Contact
Product Status Active
Number of Levels 1
Positions Per Level 4
Pitch 0.098" (2.50mm)
Mating Orientation Vertical with Board
Voltage 150 V
Mounting Type Surface Mount
Wire Termination Screwless - Spring Cage, Tension Clamp
Features Solder Retention
Ultra Librarian 3D Model Ultra Librarian 1771114 CAD Model

Description

PC terminal block, Nominal current: 6 A, Nom. voltage: 32 V, Pitch: 2.5 mm, Number of positions: 4, Type of connection: Spring-cage conn., Assembly: SMD/THT/THR, Conductor/PCB connection direction: 90 °, Color: black
