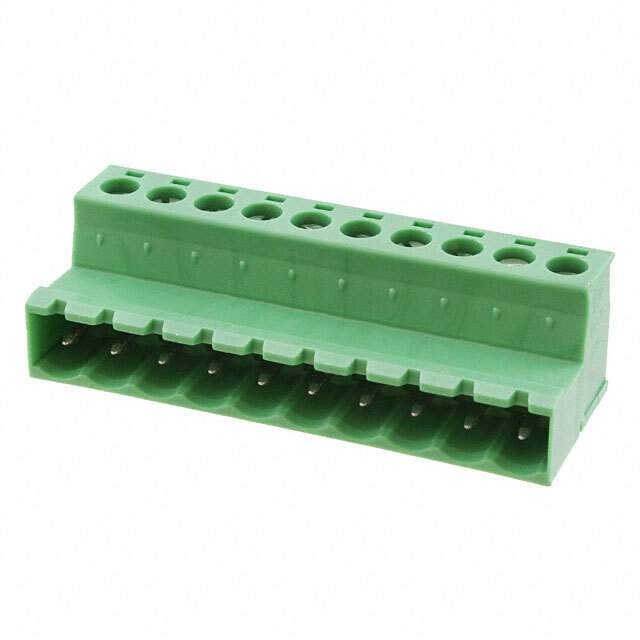

Same model may have multiple batches, images only for reference.

1786255

Name: 1786255
Brand: Phoenix Contact
SKU: 1332289
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1786255
Manufacturer	Phoenix Contact
Catalog	Headers, Plugs and Sockets
Description	TERM BLOCK PLUG 10POS STR 5.08MM / 10 Position Terminal Block Plug, Male Pins 0.200" (5.08mm) 180° Free Hanging (In-Line)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer	Phoenix Contact
Packaging	Bulk
Type	Plug, Male Pins
Number of Positions	10
Positions Per Level	10
Number of Levels	1
Pitch	0.200" (5.08mm)
Plug Wire Entry	180°
Termination Style	Screw - Rising Cage Clamp
Mounting	Free Hanging (In-Line)
Current - IEC	12A
Voltage - IEC	630 V
Current - UL	10 A
Voltage - UL	300 V
Wire Gauge or Range - AWG	12-30 AWG
Wire Gauge or Range - mm2	0.2-2.5mm2
Color	Green
Contact Mating Finish	Tin
Material Flammability Rating	UL94 V-0
Screw Size	M3
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Wire Strip Length	7mm
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.591" (15.00mm)
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.8000
Other Part Number	Q2274974A,1786255-NDR,277-5883,IC2,5/10-ST-5,08,1786255-ND
Standard Package	50
Win Source Part Number	1332289-1786255
Ultra Librarian 3D Model	Ultra Librarian 1786255 CAD Model

Alternative Products

Description

The Phoenix Contact 1332289-1786255 is a plug with male pins, suitable for connectors, interconnects, and terminal blocks.

Positions Per Level: 10
Number of Levels: 1
Pitch: 0.200 inches (5.08mm)
Plug Wire Entry: 180 degrees
Termination Style: Screw- Rising Cage Clamp
Current Rating (IEC): 12A
Current Rating (UL): 10A
Voltage Rating (IEC): 630V
Voltage Rating (UL): 300V
Wire Gauge Range: 12-30 AWG or 0.2-2.5mm2
Color: Green
Contact Mating Finish: Tin
Housing Material: Polyamide (PA) or Nylon
Material Flammability Rating: UL94 V-0
Mounting Type: Free Hanging (In-Line)
Insulation Height: 0.591 inches (15.00mm)
Wire Strip Length: 7mm
