Same model may have multiple batches, images only for reference.

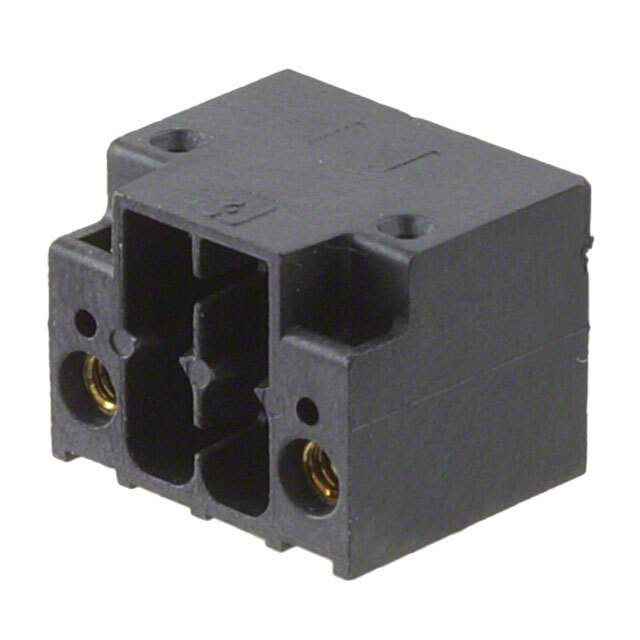

1787014 Real Image
Same model may have multiple batches, images only for reference.

1787014

Part No 1787014
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 4POS 90DEG 3.5MM / 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) 90°, Right Angle Through Hole
Datasheet
1787014 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Manufacturer Phoenix Contact
Packaging Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 4
Positions Per Level 2
Number of Levels 2
Pitch 0.138" (3.50mm)
Header Orientation 90°, Right Angle
Termination Style Solder
Mounting Through Hole
Current - IEC 8A
Voltage - IEC 250 V
Current - UL 8 A
Voltage - UL 150 V
Color Black
Contact Mating Finish Tin
Features Mating and Mounting Flange
Material Flammability Rating UL94 V-0
Housing Material Liquid Crystal Polymer (LCP)
Contact Tail Length 0.079" (2.00mm)
Insulation Height 0.425" (10.80mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number DMC152G1F35LRP20THR,DMC1,5/2-G1F-3,5-LRP20THR,1787014-ND,277-8738
Standard Package 50
Win Source Part Number 1332127-1787014
Ultra Librarian 3D Model Ultra Librarian 1787014 CAD Model

Description

The Phoenix Contact 1332127-1787014 is a connector that is used in electronic applications.

  • Application: headers, male pins, and shrouded plugs and sockets
  • Current Rating: 8A
  • Voltage Rating: 250V
  • RoHS Compliant: Yes
  • Pitch: 0.138" (3.50mm)
  • Header Orientation: 90 degrees, right angle
  • Packaging: bulk
  • Mating Flange: Yes
  • Mounting Flange: Yes
