Same model may have multiple batches, images only for reference.

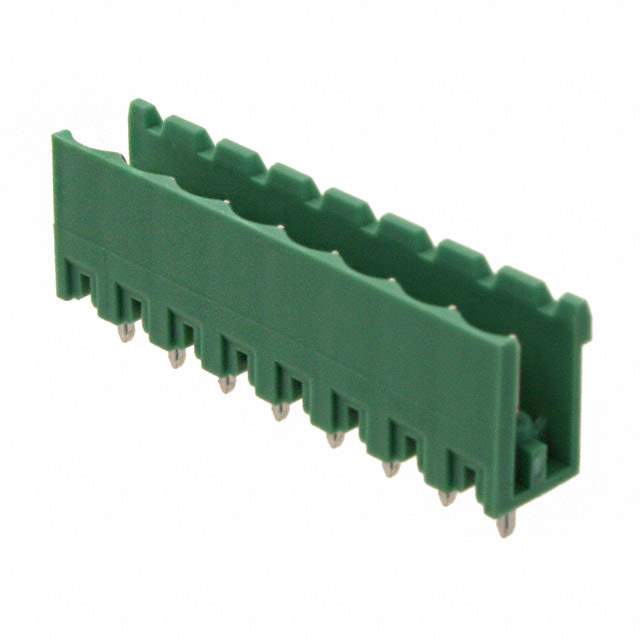

1809322 Real Image
Same model may have multiple batches, images only for reference.

1809322

Part No 1809322
Manufacturer Phoenix Contact
Catalog Terminal Blocks
Description Pluggable Terminal Blocks 8 Pos 5.08mm pitch T hrough Hole Header
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals cULus
Color Black, Green
Contact Plating Tin
Current 15 A
Current Rating 12 A
Flammability Rating UL94 V-0
Housing Color Green
Housing Material Polymer
Lead Free Lead Free
Mount Through Hole
Number of Contacts 8
Number of Levels 1
Number of Positions 8
Number of Positions Per Level 8
Number of Rows 1
Orientation Vertical
Pitch 5.08 mm
RoHS Compliant
Schedule B 8536694040, 8536694040
Termination Solder
Voltage 300 V
Voltage Rating 250 V
Win Source Part Number 1209256-1809322
Categories Terminal Blocks
Manufacturer Phoenix Contact
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1809322 CAD Model

Description

The Phoenix Contact 1209256-1809322 is a solder-type terminal block designed for easy and secure wire connections.

  • Type: Terminal Block
  • Termination Type: Solder
  • Number of Contacts: 8
  • Voltage Rating: 250 V
  • Current Rating: 12 A
  • Material: Polymer
  • Housing Color: Green
  • RoHS Compliant: Yes
  • Mounting Type: Through Hole
  • Manufacturer: Phoenix Contact
