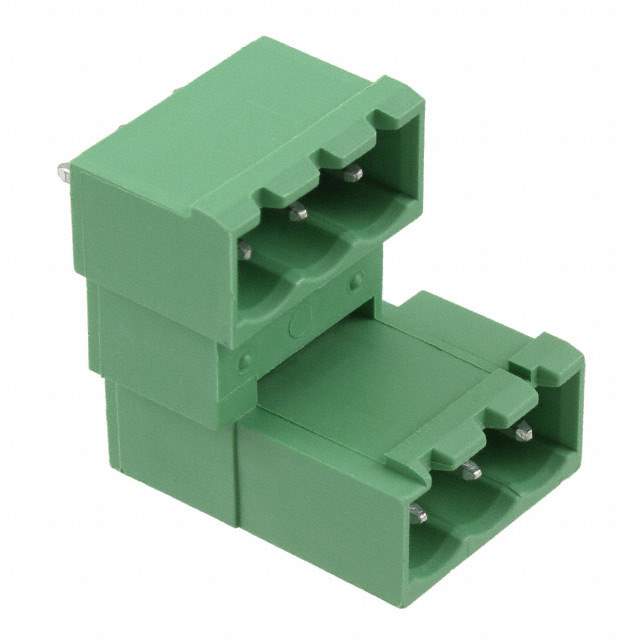

1845345 Real Image1 1845345 Real Image2
Same model may have multiple batches, images only for reference.
1845345 Real Image1 1845345 Real Image2
1845345 Real Image1 1845345 Real Image2
Same model may have multiple batches, images only for reference.

1845345

Part No 1845345
Manufacturer Phoenix Contact
Catalog Headers, Plugs and Sockets
Description TERM BLOCK HDR 6POS VERT 5.08MM / 6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Terminal Blocks>Headers, Plugs and Sockets
Mfr Phoenix Contact
Series COMBICON MDSTBVA
Package Bulk
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 6
Positions Per Level 3
Number of Levels 2
Pitch 0.200" (5.08mm)
Header Orientation Vertical
Plug Wire Entry -
Termination Style Solder
Mounting Type Through Hole
Current - IEC 10A
Voltage - IEC 400 V
Current - UL 12 A
Voltage - UL 300 V
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm2 -
Color Green
Temperature Range - Operating -
Contact Mating Finish Tin
Features -
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length -
Contact Material -
Housing Material Polybutylene Terephthalate (PBT)
Contact Tail Length 0.154" (3.90mm)
Insulation Height 0.870" (22.10mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 50 pcs
Win Source Part Number 1380592-1845345
Ultra Librarian 3D Model Ultra Librarian 1845345 CAD Model

Description

The Phoenix Contact 1197729 is a terminal block header with male pins and a shrouded design on all four sides.

  • Positions: 6
  • Positions per Level: 3
  • Levels: 2
  • Pitch: 0.200" (5.08mm)
  • Orientation: Vertical
  • Termination Style: Solder
  • Current Rating (IEC): 10A
  • Voltage Rating (IEC): 400V
  • Voltage Rating (UL): 300V
  • Color: Green
  • Housing Material: Polybutylene terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Packaging: Bulk
  • Standard Package: 50 pieces
  • Manufacturer: Phoenix Contact
