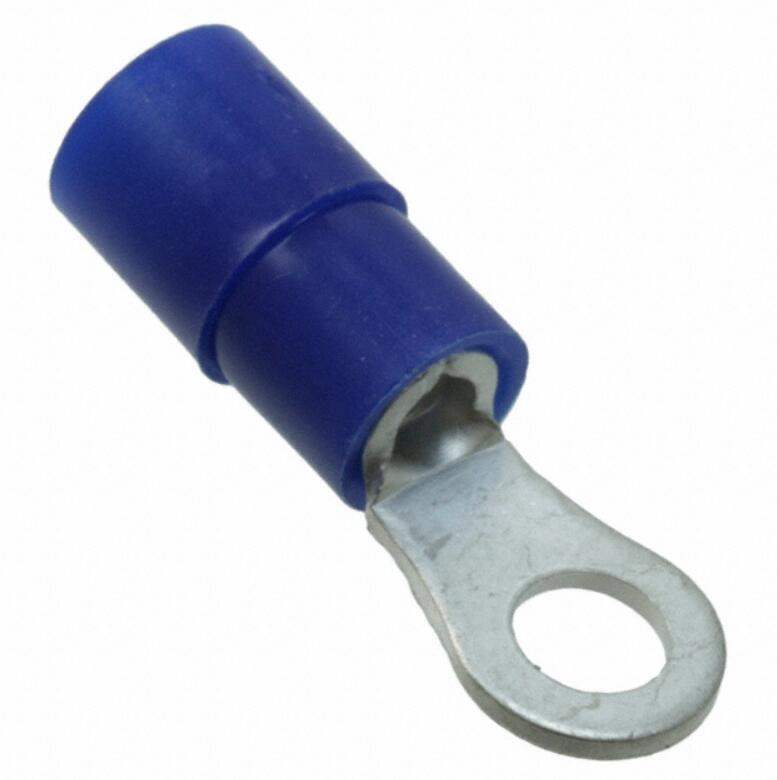

Same model may have multiple batches, images only for reference.
3240021 Phoenix Contact
Same model may have multiple batches, images only for reference.

3240021

Part No 3240021
Manufacturer Phoenix Contact
Catalog Terminals
Description CONN RING CIRC 14-16AWG M3 CRIMP
Datasheet
3240021 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1204451-3240021
Win Source Part Number Cross
Manufacturer Phoenix Contact
Series CLIPLINE
Package Bulk
Product Status Active
Terminal Type Circular
Stud/Tab Size M3 Stud
Thickness 0.031" (0.79mm)
Width - Outer Edges 0.260" (6.60mm)
Length - Overall 0.811" (20.60mm)
Mounting Type Free Hanging (In-Line)
Termination Crimp
Ultra Librarian 3D Model Ultra Librarian 3240021 CAD Model

Description

Product Features ：●  The insulated ring cable lugs with plastic sleeve are hard-soldered and feature the 'EASY ENTRY' system<br /> ● The sleeves are conically tapered to facilitate easy and correct insertion of the conductor
