The Qspeed™ series rectifier diode is designed for fast recovery times of less than 500 ns and a current of over 200 mA (Io).

• Series: Qspeed™
• Recovery Time: Less than 500 ns
• Current (Io): Over 200 mA
• Voltage Rating: 200 V
• Forward Voltage: 1.15 V @ 10 A
• Reverse Recovery Time (trr): 16 ns
• Current Leakage @ Vr: 500 µA @ 200 V
• Diode Configuration: 1 Pair Common Cathode
• Average Rectified Current: 10 A per Diode
• Mounting Type: Surface Mount

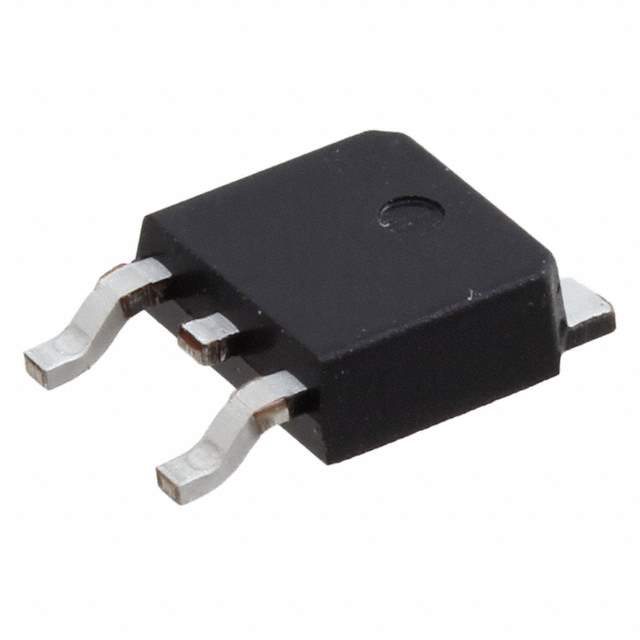

• Package: TO-252-3, DPak (2 Leads + Tab), SC-63
• Packaging: Tape and Reel
• Operating Temperature Range: -55°C to 150°C
• ECCN: EAR99
• Alternative Part: LQA20N200C
