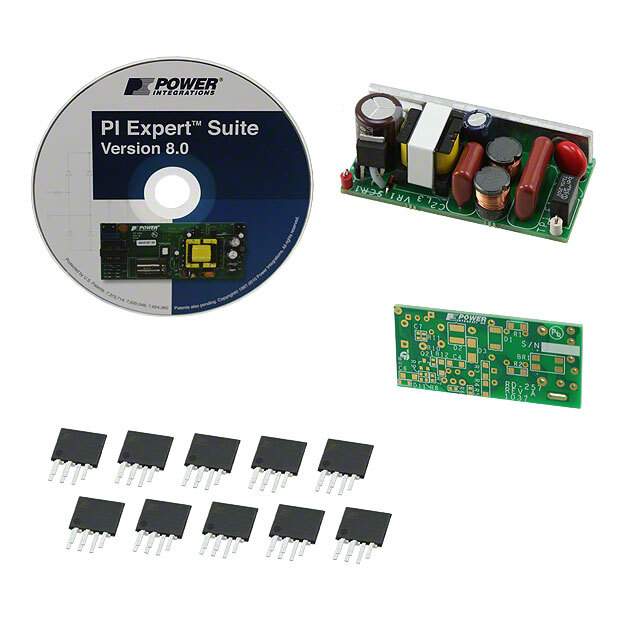

RDK-257 Real Image
Same model may have multiple batches, images only for reference.

RDK-257

Part No RDK-257
Manufacturer Power Integrations
Catalog Board Mount LED Drivers
Description REFERENCE DESIGN LINKSWITCH-PH / REFERENCE DESIGN KITS
Datasheet
RDK-257 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Power Integrations
Series LinkSwitch-PH
Output Current per Channel 330mA
Outputs and Type 1, Non-Isolated
Voltage - Output 36V
Voltage - Input 90 ~ 265 VAC
Supplied Contents Board(s)
Utilized IC / Part LNK405EG
Win Source Part Number 779644-RDK-257
Popularity Medium
Supply and Demand Status Balance
Introduction Date August 10, 2014
ECCN EAR99
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian RDK-257 CAD Model

Description

The Power Integrations 779644-RDK-257 is a development kit for the LinkSwitch-PH series.

  • Output Voltage: 36V
  • Input Voltage: 90 ~ 265 VAC
  • IC/Part: LNK405EG
  • Output Channels: 1
  • Output Current: 330mA
  • Components: Supplied
  • Application: Development and programming
