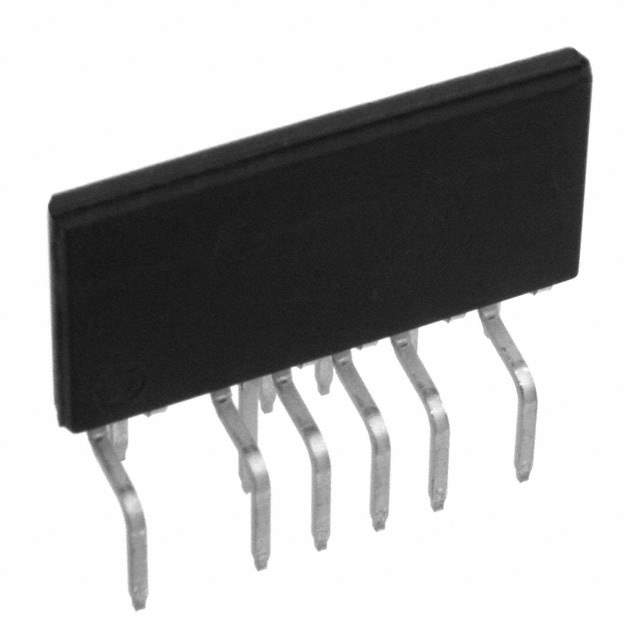

TFS759HG Real Image
Same model may have multiple batches, images only for reference.

TFS759HG

Part No TFS759HG
Manufacturer Power Integrations
Catalog PMIC - AC DC Converters, Offline Switchers
Description IC PWR SUPPLY CTLR 280W ESIP-16
Datasheet
TFS759HG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Power Integrations
Packaging Tube/Rail
Status Active
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 530V, 725V
Topology Flyback, Forward
Voltage - Start Up 12.1V
Supply Voltage - Operating 11.1 V to 13.4 V
Duty Cycle 70%
Frequency - Switching 66kHz
Power (Watts) 280W
Fault Protection Current Limiting, Over Temperature, Over Voltage, Short Circuit
Control Features EN
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package 16-eSIPB
Mounting Through Hole
Win Source Part Number 1106861-TFS759HG
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TFS759HG CAD Model

Description

The Power Integrations 1106861-TFS759HG is a through-hole mounted integrated circuit designed for use in power applications.

  • Mounting Type: Through-hole
  • Power Rating: 280W
  • Isolation: Isolated with internal switches
  • Voltage Breakdown: 530V and 725V
  • Topology: Flyback and Forward
  • Startup Voltage: 12.1V
  • Duty Cycle: 70%
  • Switching Frequency: 66kHz
  • Protection: Current Limiting, Over-Temperature, Over-Voltage, Short Circuits
  • Control Feature: EN
  • Operating Temperature: -40°C to 150°C
  • Package: 16-eSIPB
  • Supply Voltage: 11.1V to 13.4V
  • Status: Active
  • Popularity: Medium
