499-80-268-10-009101 Preci-Dip

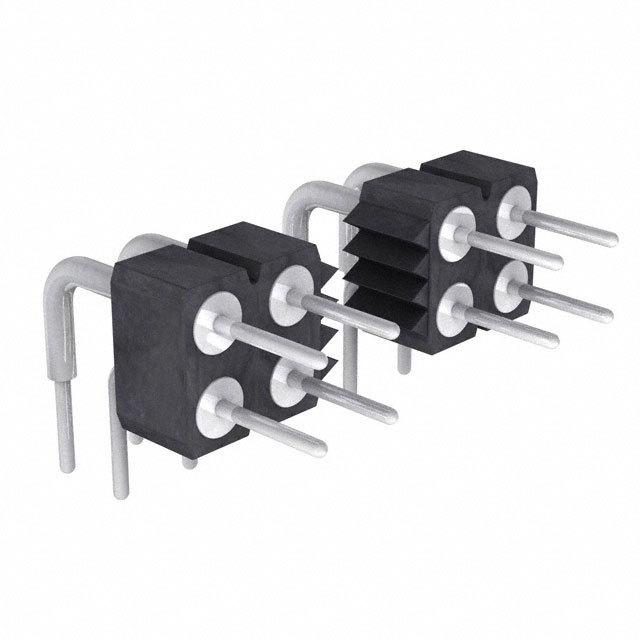

Same model may have multiple batches, images only for reference.

499-80-268-10-009101

Part No 499-80-268-10-009101
Manufacturer Preci-Dip
Catalog Rectangular Connectors
Description CONN HDR 68POS 2.54MM T/H R/A
Datasheet
499-80-268-10-009101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Preci-Dip
Packaging Bulk
Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 2.54mm
Style Board to Board
Shrouding Unshrouded
Number of Positions 68
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.157" (4.00mm)
Contact Length - Post 0.126" (3.20mm)
Insulation Height 0.200" (5.08mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Temperature Range - Operating -55°C to 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 3A
Voltage Rating 150VDC
Win Source Part Number 1010809-499-80-268-10-009101
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 499-80-268-10-009101 CAD Model

Description

The 1010809-499-80-268-10-009101 from Preci-Dip is a high-quality electronic component used for board-to-board connections.

  • Pin Type: Male
  • Fastening Type: Push-Pull
  • Pitch: 2.54mm
  • Voltage Rating: 150VDC
  • Current Rating: 3A
