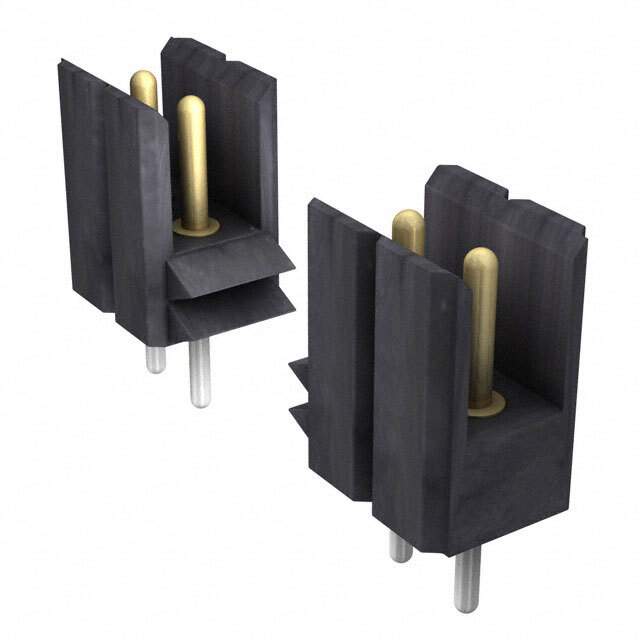

Same model may have multiple batches, images only for reference.

800-V3-018-12-002101

Name: 800-V3-018-12-002101
Brand: Preci-Dip
SKU: 29660
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	800-V3-018-12-002101
Manufacturer	Preci-Dip
Catalog	Rectangular Connectors
Description	CONN HDR 18POS 0.100 T/H
Datasheet	800-V3-018-12-002101 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Preci-Dip
Packaging	Bulk
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	2.54mm
Style	Board to Board
Shrouding	Unshrouded
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.141" (3.60mm)
Contact Length - Post	0.118" (3.00mm)
Overall Contact Length	0.386" (9.80mm)
Insulation Height	0.272" (6.91mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5μin (0.75μm)
Contact Finish - Post	Tin
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Temperature Range - Operating	-55°C to 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating	3A
Voltage Rating	150VDC
Win Source Part Number	115632-800-V3-018-12-002101
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 800-V3-018-12-002101 CAD Model

Alternative Products

Description

Product Description

The 800-V3-018-12-002101 is engineered for high-performance applications where precision and reliability are critical. Designed to meet industry standards, it is suitable for advanced technological projects.

Applications

Industrial automation systems
Robotics
Aerospace instrumentation

Features and Benefits

Enhanced precision and control capabilities
Built to withstand harsh environments
Long operational lifespan

Additional Details

Ideal for use in high-stakes fields, this component provides reliability and performance you can depend on over extended periods.
