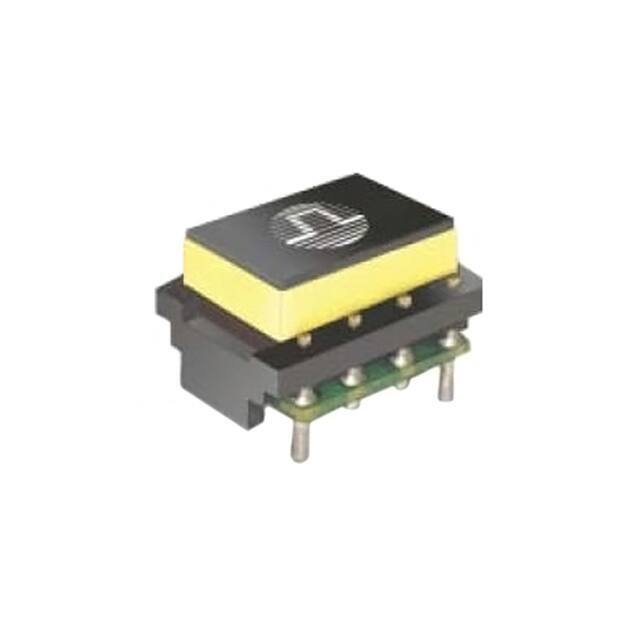

B8817NL
Same model may have multiple batches, images only for reference.

B8817NL

Part No B8817NL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR ETSI 600 OHM
Datasheet
B8817NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Series SmartER Splitter™
Package Tray
Product Status Active
Transformer Type ADSL, VDSL
Mounting Type Through Hole
Size / Dimension 0.681" L x 0.512" W (17.30mm x 13.00mm)
Height - Seated (Max) 0.453" (11.50mm)
Standard Package 80 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 863317-B8817NL
Ultra Librarian 3D Model Ultra Librarian B8817NL CAD Model

Description

The 863317-B8817NL is a pulse transformer designed for use in transformers - pulse transformers category.

  • Design: SmartER Splitter™ transformer
  • Mounting Type: Through hole
  • Package: Tray
  • Size: 0.681" L x 0.512" W (17.30mm x 13.00mm)
  • Seated Height: 0.453" (11.50mm)
  • Product Status: Active
  • Standard Package: 80 pcs
  • REACH Regulations: Not affected
  • HTSUS Code: 8504.31.2000
  • Manufacturer: Pulse
