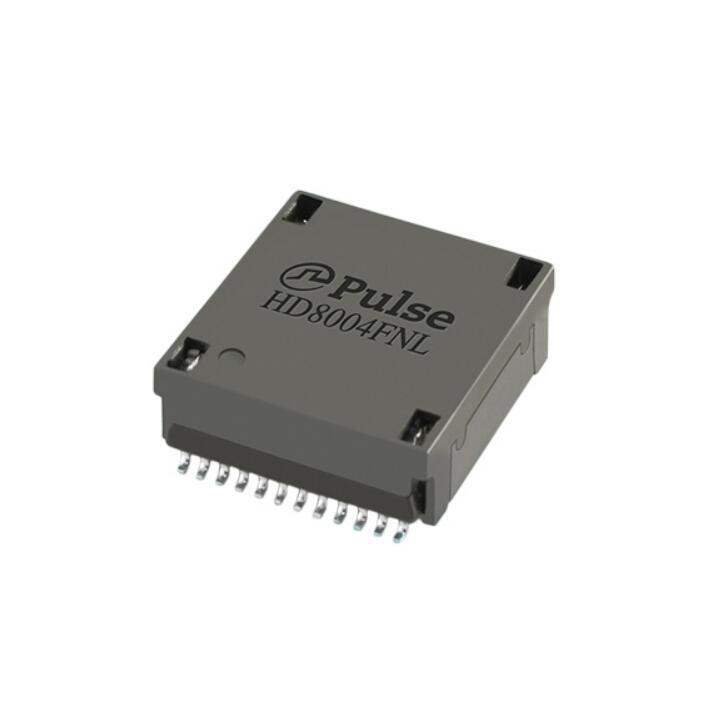

HD8004FNLT Pulse Electronics
Same model may have multiple batches, images only for reference.

HD8004FNLT

Part No HD8004FNLT
Manufacturer Pulse
Catalog Pulse Transformers
Description TRANSFORMER HDBASE-T 34W
Datasheet
HD8004FNLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202642-HD8004FNLT
Win Source Part Number Cross
Manufacturer Pulse Electronics
Category Transformers Pulse Transformers
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Transformer Type HDBase-T
Inductance 180µH
Mounting Type Surface Mount
Size / Dimension 0.539" L x 0.591" W (13.70mm x 15.00mm)
Ultra Librarian 3D Model Ultra Librarian HD8004FNLT CAD Model

Description

The 1202642 electronic component is a HDBase-T pulse transformer manufactured by Pulse Electronics.

  • Application: HDBase-T
  • Size: 0.539" L x 0.591" W (13.70mm x 15.00mm)
  • Mounting: Surface Mountable
  • Inductance: 180µH
  • Technology: HDBase-T
  • Package: Tape & Reel (TR) Cut Tape (CT) Digi-Reel®
  • Status: Active
